Oberdorfer Pump # 800B Parts Order page( Click Here for the Oberdorfer Pump # 800B Product Page ) |
|

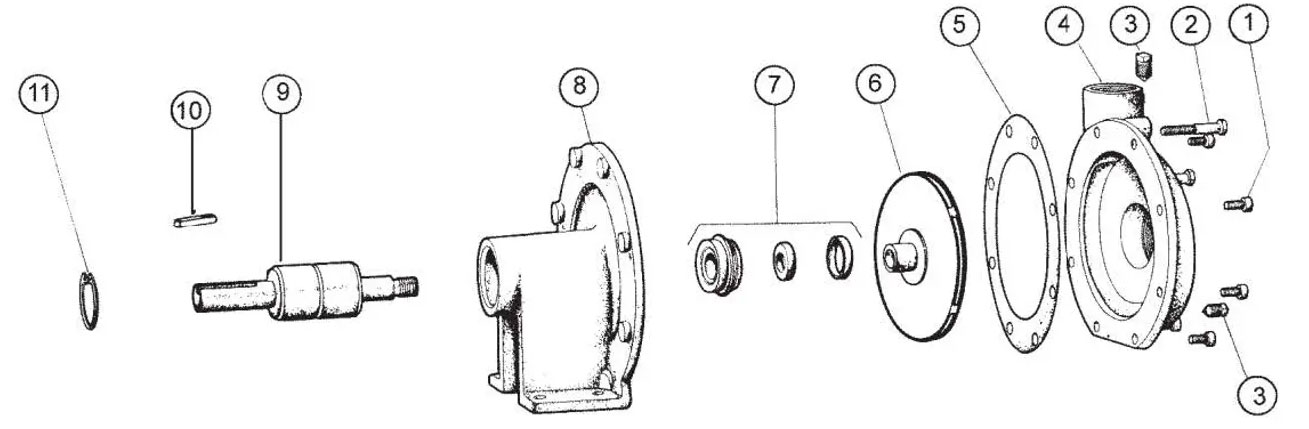

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 800B | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 10945 | Repair Kit - includes O-Ring, Impeller, Seal Assembly, Shaft and Bearing, Key | $976.00 | 5 in Stock | 1 | ||
| 1 | # 5411 | Screw | $6.30 | 16 in Stock | 4 | ||
| 3 | # 5395 | Plug | $3.12 | 2 in Stock | 4 | ||
| 4 | # 7249 | Body | $741.00 | 1 in Stock | 1 | ||
| 5 | # 9797-162 | O-Ring | $14.03 | 2 in Stock | 1 | ||
| 6 | # 32270 | Impeller | $684.00 | 1 in Stock | 1 | ||
| 7 | # 32210 | Seal Assembly | $222.00 | 7 in Stock | 1 | ||
| 9 | # 6425 | Shaft and Bearing | $394.00 | 9 in Stock | 1 | ||
| 10 | # 6567 | Key | $6.30 | 3 in Stock | 1 | ||
| 11 | # 5650 | Retaining Ring | $7.88 | 1 in Stock | 1 | ||
