Oberdorfer Pump # 750B Parts Order page( Click Here for the Oberdorfer Pump # 750B Product Page ) |
|

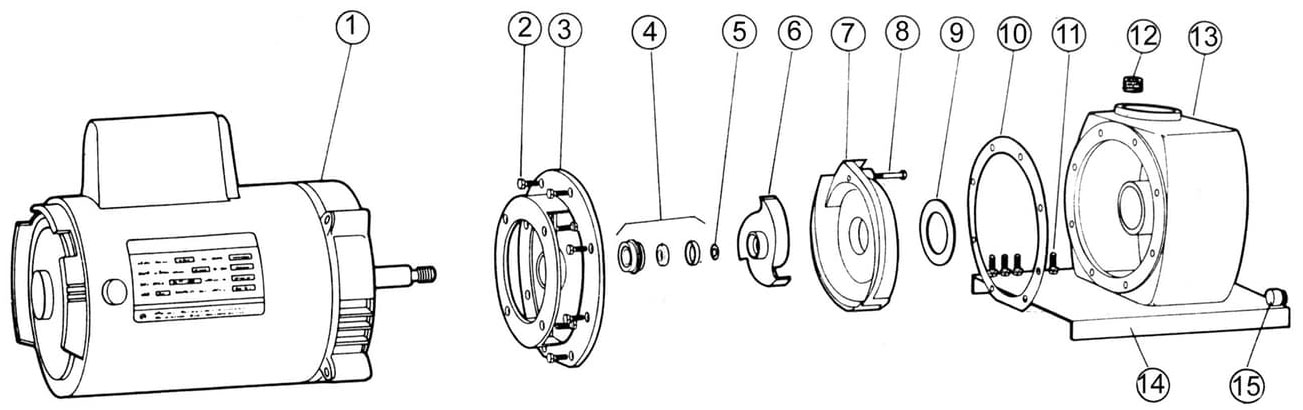

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 750B | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 11145 | Repair Kit - includes Seal Assembly, Impeller, Gasket Diffuser, O-Ring | $318.00 | 2 in Stock | 1 | ||
| 2 | # 5411 | Screw | $6.30 | 16 in Stock | 12 | ||
| 3 | # 7926 | Adapter | $878.00 | 2 in Stock | 1 | ||
| 4 | # 32155 | Seal Assembly | $85.00 | 2 in Stock | 1 | ||
| 6 | # 7927 | Impeller | $293.00 | 3 in Stock | 1 | ||
| 7 | # 7928 | Diffuser | $439.00 | 1 in Stock | 1 | ||
| 8 | # 7796 | Screw | $24.21 | 15 in Stock | 2 | ||
| 9 | # 7798 | Gasket Diffuser | $11.01 | 4 in Stock | 1 | ||
| 10 | # 2390-167 | O-Ring | $11.01 | 3 in Stock | 1 | ||
| 11 | # 7637 | Screw | $28.90 | 0 in Stock | 4 | ||
| 12 | # 7934 | Plug | $14.03 | 3 in Stock | 1 | ||
| 15 | # 7321 | Plug | $3.43 | 73 in Stock | 1 | ||
