Oberdorfer Pump # 750B-T19 Parts Order page

( Click Here for the Oberdorfer Pump # 750B-T19 Product Page )

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	Part #	Description	Price	Stock	Required

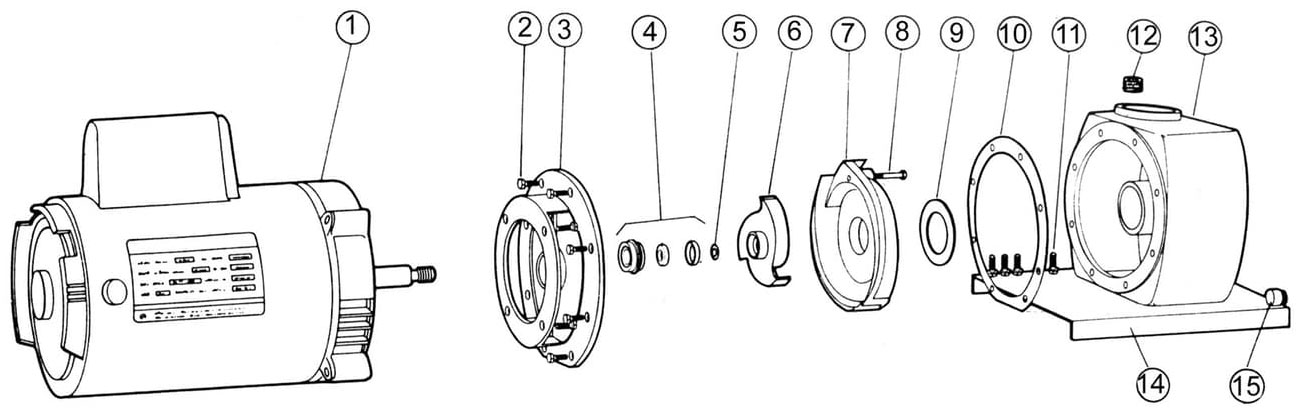

Parts List for Oberdorfer Pump model # 750B-T19
KIT	# 11145	Repair Kit - includes Seal Assembly, Impeller, Gasket Diffuser, O-Ring	$318.00	2 in Stock	1

1	# 5862	Motor	$1667.00	0 in Stock	1

2	# 5411	Screw	$6.30	16 in Stock	12

3	# 7926	Adapter	$878.00	2 in Stock	1

4	# 32155	Seal Assembly	$85.00	2 in Stock	1

6	# 7927	Impeller	$293.00	3 in Stock	1

7	# 7928	Diffuser	$439.00	1 in Stock	1

8	# 7796	Screw	$24.21	15 in Stock	2

9	# 7798	Gasket Diffuser	$11.01	4 in Stock	1

10	# 2390-167	O-Ring	$11.01	3 in Stock	1

11	# 7637	Screw	$28.90	0 in Stock	4

12	# 7934	Plug	$14.03	3 in Stock	1

15	# 7321	Plug	$3.43	73 in Stock	1

17	# 5597	Hex Nut	$4.72	24 in Stock	4
