Oberdorfer Pump # 70P Parts Order page( Click Here for the Oberdorfer Pump # 70P Product Page ) |
|

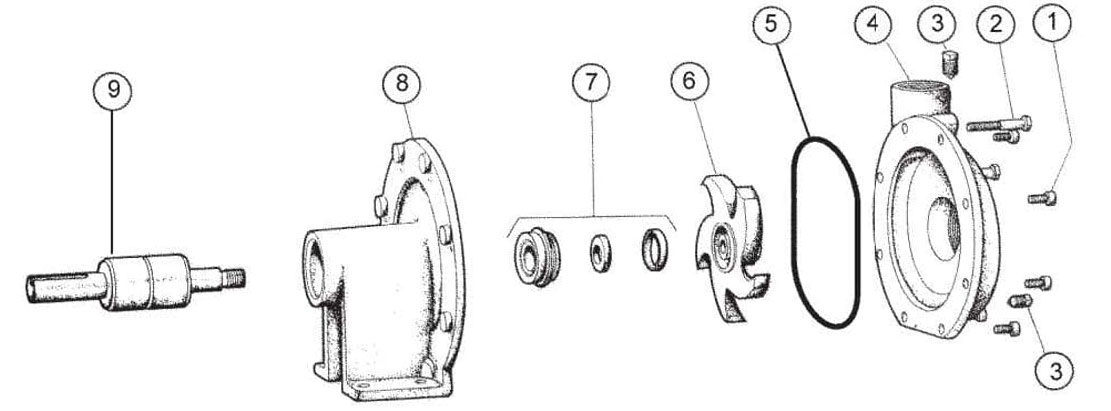

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 70P | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 10693 | Repair Kit - includes O-Ring, Impeller, Seal Head, Seal Wear-face, Shaft and Bearing | $343.00 | 3 in Stock | 1 | ||
| 1 | # 978304 | Screw | $3.12 | 0 in Stock | 5 | ||
| 2 | # 978314 | Screw | $3.12 | 0 in Stock | 3 | ||
| 3 | # 5395 | Plug | $3.12 | 2 in Stock | 2 | ||
| 4 | # 5266 | Body | $552.00 | 4 in Stock | 1 | ||
| 5 | # 9797-157 | O-Ring | $7.88 | 17 in Stock | 1 | ||
| 6 | # 5267 | Impeller | $201.00 | 3 in Stock | 1 | ||
| 7b | # 529201 | Seal Wear-face | $70.50 | 71 in Stock | 1 | ||
| 7c | # 529201 | Seal Seat or O-Ring | $70.50 | 71 in Stock | 1 | ||
| 9 | # 5348 | Shaft and Bearing | $266.00 | 40 in Stock | 1 | ||
| 10 | # 5741 | Retaining Ring | $7.88 | 2 in Stock | 1 | ||
