Oberdorfer Pump # 700A-F13 Parts Order page( Click Here for the Oberdorfer Pump # 700A-F13 Product Page ) |
|

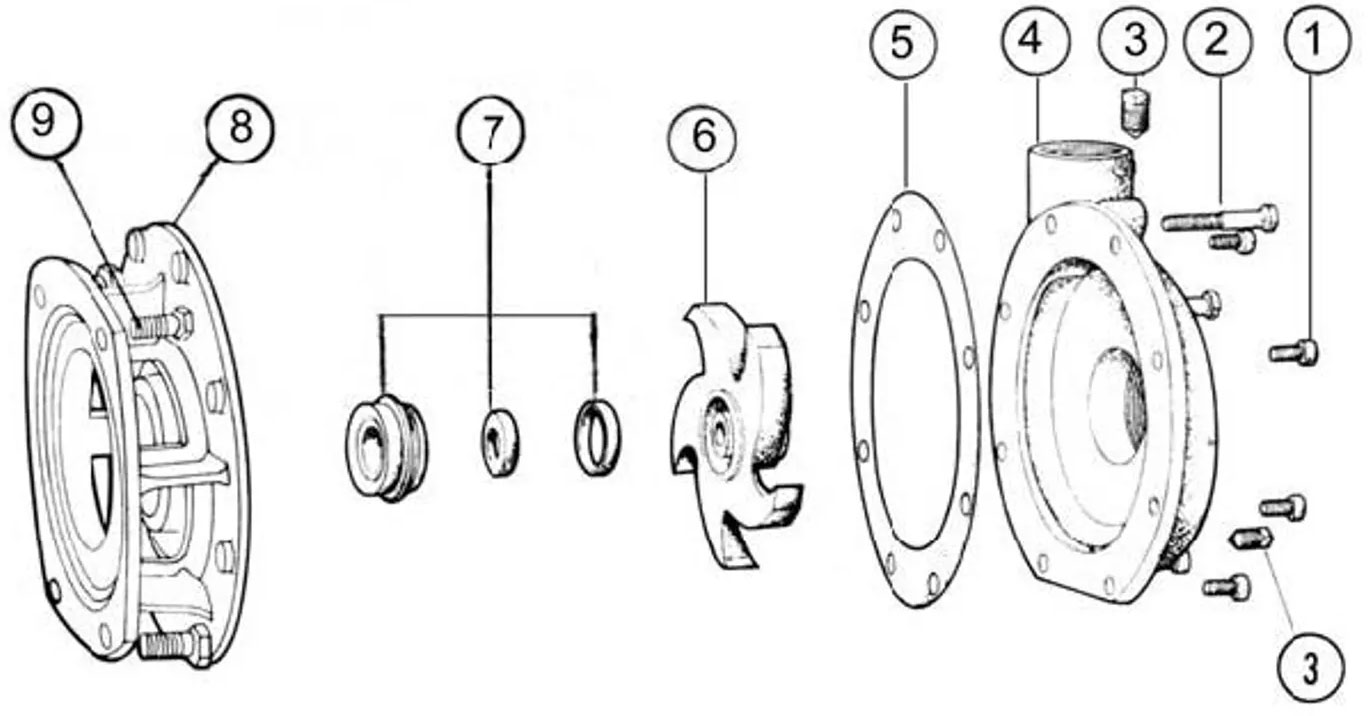

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 700A-F13 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 10697 | Repair Kit - includes O-Ring, Impeller, Seal Assembly | $494.00 | 2 in Stock | 1 | ||
| MOT | # 5859 | Electric Motor F13, 1/3 HP, Single Phase, 56J Frame, 3450/2850 RPM, ODP | $686.00 | 2 in Stock | 1 | ||
| 1 | # 978304 | Screw | $3.12 | 0 in Stock | 5 | ||
| 2 | # 978314 | Screw | $3.12 | 0 in Stock | 3 | ||
| 3 | # 5395 | Pipe Plug | $3.12 | 2 in Stock | 1 | ||
| 4 | # 5266 | Body | $552.00 | 4 in Stock | 1 | ||
| 5 | # 9797-157 | O-Ring | $7.88 | 17 in Stock | 1 | ||
| 6 | # 6075 | Impeller | $416.12 | 4 in Stock | 1 | ||
| 7 | # 32154 | Seal Assembly | $89.30 | 2 in Stock | 1 | ||
| 8 | # 5251 | Adapter | $640.00 | 1 in Stock | 1 | ||
| 9 | # 5411 | Screw | $6.30 | 16 in Stock | 4 | ||
