Oberdorfer Pump # 600P-J57 Parts Order page( Click Here for the Oberdorfer Pump # 600P-J57 Product Page ) |
|

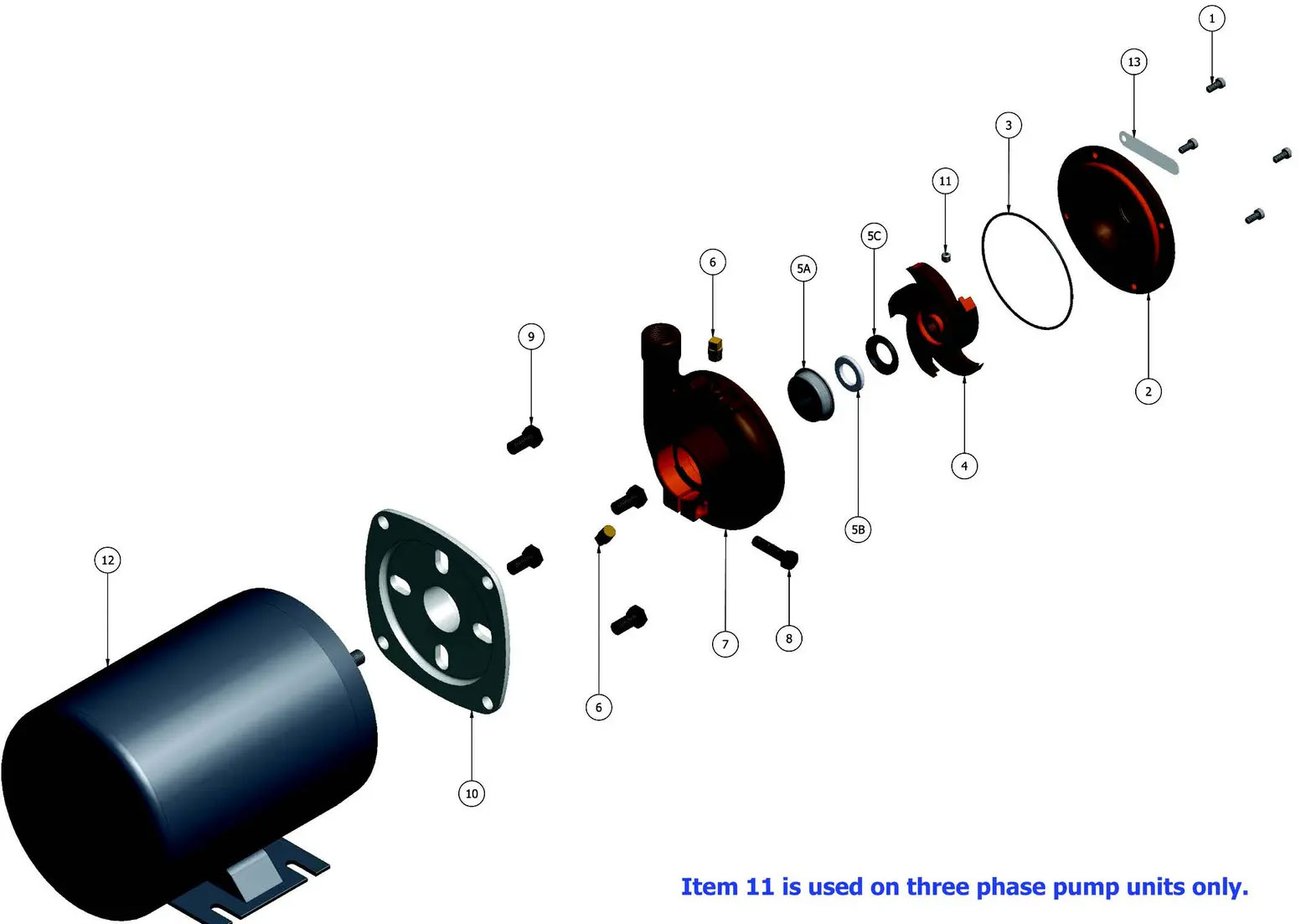

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 600P-J57 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 10858 | Repair Kit - includes O-Ring, Impeller, Seal Head, Seal Wearface | $258.00 | 0 in Stock | 1 | ||
| MOT | # 6998 | Electric Motor J57, 1/2 HP, Three Phase, 56J Frame, 3450 RPM, 220/440V, ODP | $1037.00 | 0 in Stock | 1 | ||
| 1 | # 5385 | Screw | $4.72 | 34 in Stock | 4 | ||
| 2 | # 5168-2 | Cover | $205.00 | 2 in Stock | 1 | ||
| 3 | # 9797-043 | O-Ring | $6.30 | 27 in Stock | 1 | ||
| 4 | # 7201 | Impeller | $140.00 | 0 in Stock | 1 | ||
| 5b | # 529201 | Seal Wearface | $70.50 | 71 in Stock | 1 | ||
| 5c | # 529201 | Seal Seat or O-Ring | $70.50 | 71 in Stock | 1 | ||
| 6 | # 5395 | Plug | $3.12 | 2 in Stock | 2 | ||
| 8 | # 5595 | Screw | $7.88 | 0 in Stock | 1 | ||
| 9 | # 5411 | Screw | $6.30 | 16 in Stock | 4 | ||
| 10 | # 7611 | Adapter | $95.47 | 1 in Stock | 1 | ||
| 11 | # 9849 | Set Screw | $13.32 | 0 in Stock | 1 | ||
| 13 | # 7736 | Name Plate | $29.15 | 0 in Stock | 1 | ||
