Oberdorfer Pump # 600-F21 Parts Order page( Click Here for the Oberdorfer Pump # 600-F21 Product Page ) |
|

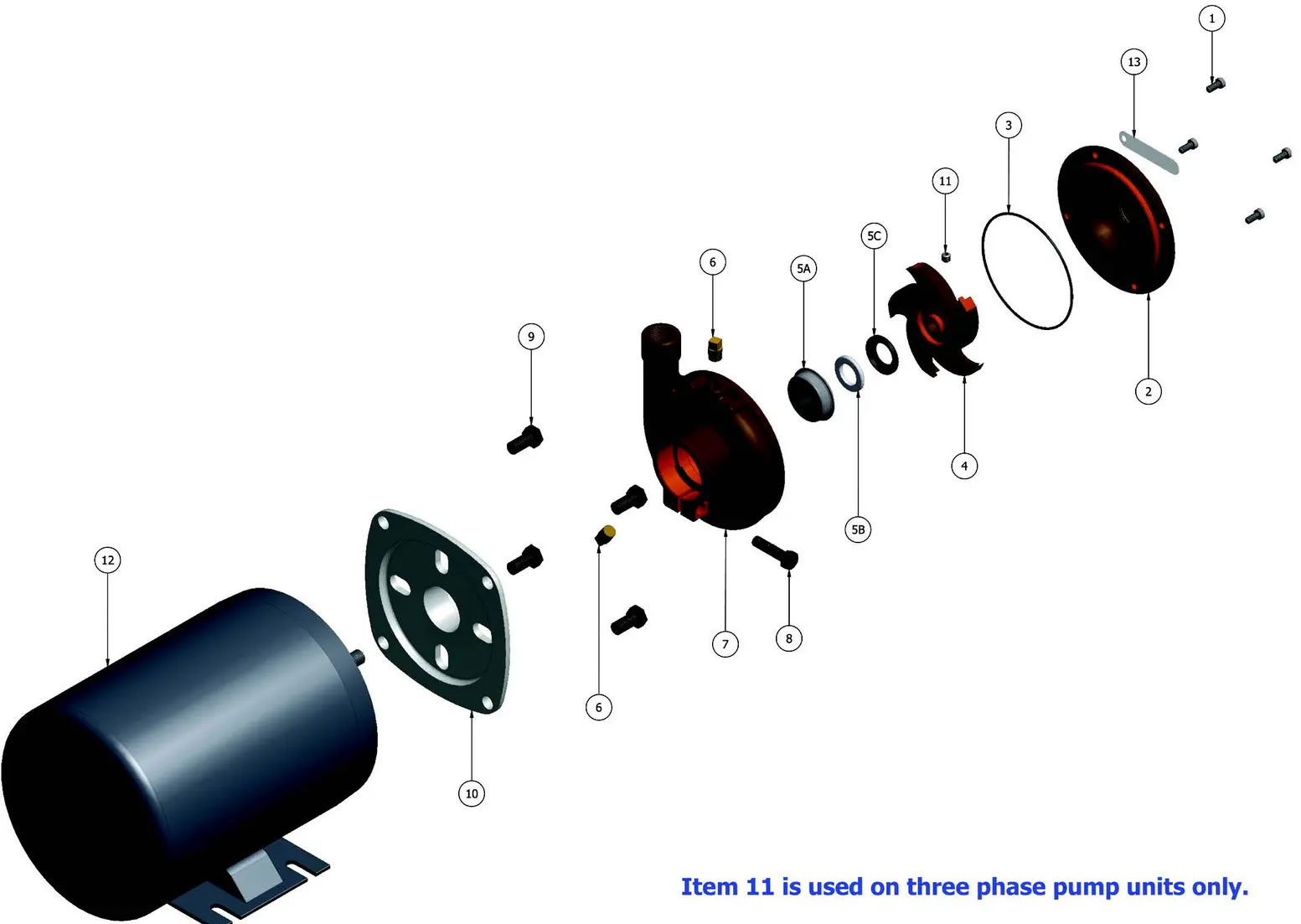

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 600-F21 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 10696 | Repair Kit - includes O-Ring, Impeller, Seal Head, Seal Wearface | $215.00 | 2 in Stock | 1 | ||
| MOT | # 8214 | Electric Motor F21, 1/3 HP, Single Phase, 56J Frame, 3450 RPM, 115/230V, XP | $2001.00 | 2 in Stock | 1 | ||
| 1 | # 5385 | Screw | $4.72 | 34 in Stock | 4 | ||
| 2 | # 5168-2 | Cover | $205.00 | 2 in Stock | 1 | ||
| 3 | # 9797-043 | O-Ring | $6.30 | 27 in Stock | 1 | ||
| 4 | # 5219 | Impeller | $139.00 | 11 in Stock | 1 | ||
| 5b | # 529201 | Seal Wearface | $70.50 | 71 in Stock | 1 | ||
| 5c | # 529201 | Seal Seat or O-Ring | $70.50 | 71 in Stock | 1 | ||
| 6 | # 6052 | Plug | $14.03 | 0 in Stock | 2 | ||
| 8 | # 5595 | Screw | $7.88 | 0 in Stock | 1 | ||
| 9 | # 5411 | Screw | $6.30 | 16 in Stock | 4 | ||
| 10 | # 7611 | Adapter | $95.47 | 1 in Stock | 1 | ||
| 13 | # 7736 | Name Plate | $29.15 | 0 in Stock | 1 | ||
