Oberdorfer Pump # 500P Parts Order page( Click Here for the Oberdorfer Pump # 500P Product Page ) |
|

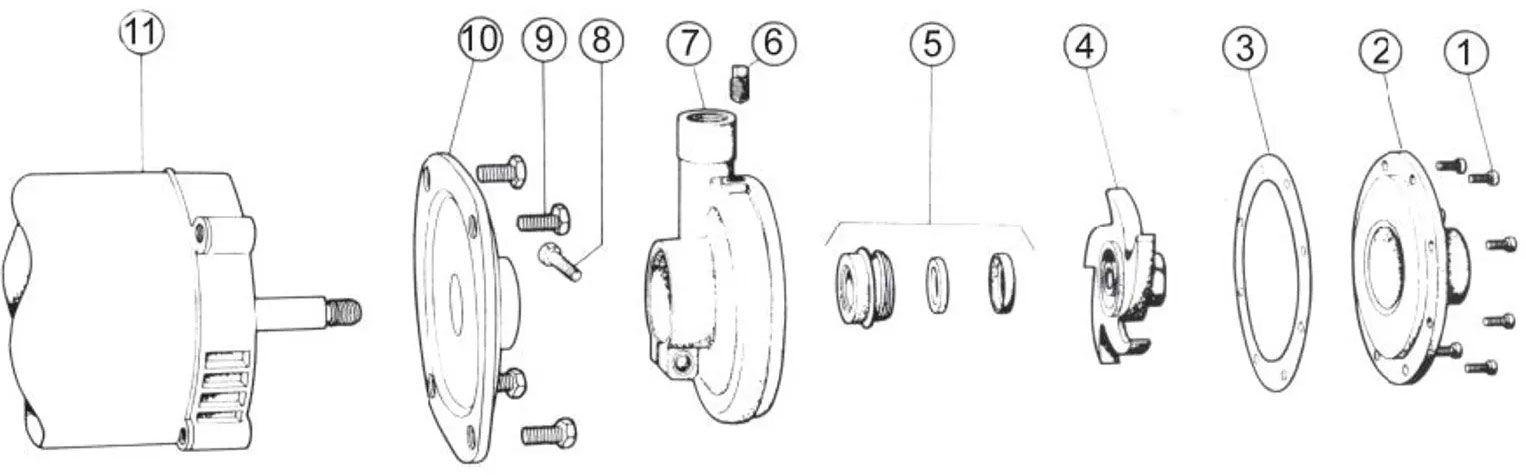

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Oberdorfer Pump model # 500P | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 11062 | Repair Kit (3 Phase) - includes Gasket, Impeller, Seal Assembly, Screw Set | $558.00 | 1 in Stock | 1 | ||
| 1 | # 5385 | Screw | $4.72 | 34 in Stock | 6 | ||
| 2 | # 6483 | Cover | $194.00 | 2 in Stock | 1 | ||
| 3 | # 6502 | Gasket | $7.88 | 4 in Stock | 1 | ||
| 4 | # 7351 | Impeller | $211.05 | 0 in Stock | 1 | ||
| 5 | # 32154 | Seal Assembly | $89.30 | 2 in Stock | 1 | ||
| 6 | # 6052 | Plug | $14.03 | 0 in Stock | 1 | ||
| 8 | # 5595 | Screw | $7.88 | 0 in Stock | 1 | ||
| 9 | # 5411 | Screw | $6.30 | 16 in Stock | 4 | ||
| 10 | # 7611 | Adapter | $95.47 | 1 in Stock | 1 | ||
| 12 | # 9849 | Screw Set | $13.32 | 0 in Stock | 1 | ||
