Oberdorfer Pump # 300BP Parts Order page

( Click Here for the Oberdorfer Pump # 300BP Product Page )

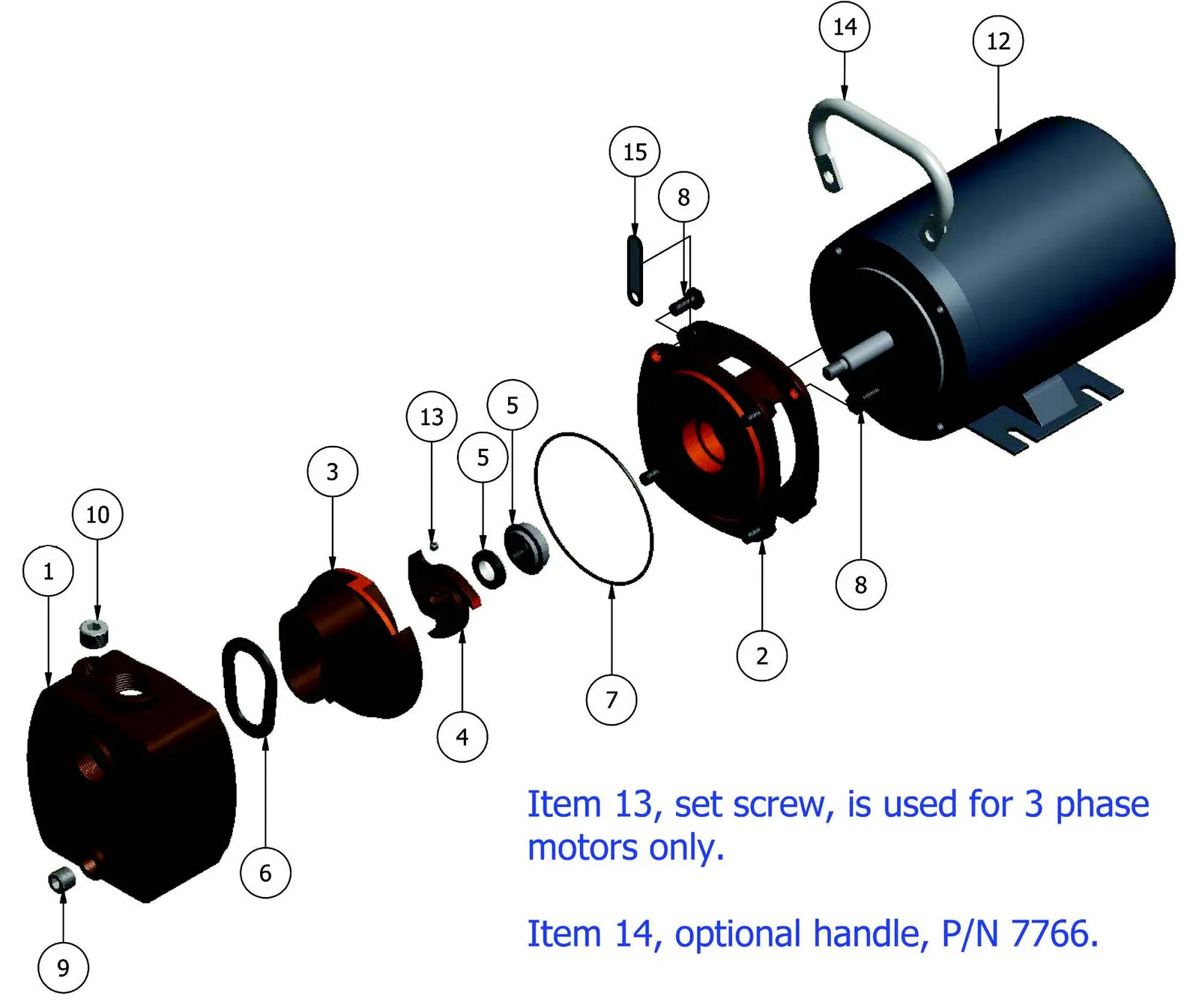

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	Part #	Description	Price	Stock	Required
Parts List for Oberdorfer Pump model # 300BP
KIT	# 10866	Repair Kit - includes Impeller, Seal Assembly, Diffuser Gasket, O-Ring, Set Screw	$364.00	4 in Stock	1

1	# 7190	Body	$765.00	2 in Stock	1

2	# 7191	Adapter	$571.00	1 in Stock	1

3	# 7192	Diffuser	$335.00	3 in Stock	1

4	# 7200	Impeller	$213.00	6 in Stock	1

5	# 32155	Seal Assembly	$85.00	2 in Stock	1

6	# 6021-09	Diffuser Gasket	$17.22	6 in Stock	1

7	# 9797-157	O-Ring	$7.88	21 in Stock	1

8	# 5411	Screw	$6.30	16 in Stock	8

9	# 7321S	Plug	$2.89	10 in Stock	1

10	# 7443S	Plug	$11.17	8 in Stock	1

13	# 9849	Set Screw	$13.32	0 in Stock	1

14	# 7766	Handle (Optional)	$84.12	18 in Stock	1

15	# 7783	Nameplate	$25.51	0 in Stock	1

Oberdorfer Pump # 300BP Parts Order page

Your Parts Order List (so far)
