March Pump model MDX Parts
PARTS LIST for March Pump model # MDX Pump:
( Click Here for the March Pump MDX Product Page )

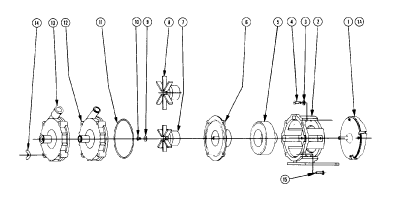

Item 1
(on image above)
Part # 0135-0109-1000
Motor (1750 RPM) 115V 60HZ 1750RPM SB (No Base) 38Cord ( for #'s MDX )
$ 113.31 / each
Item 1a
(on image above)
Part # 0135-0036-1000
Motor (3500 RPM) 115V 50/60HZ 3500RPM SB (No Base) 38C ( for #'s MDX-3 )
$ 156.09 / each
Item 3
(on image above)
Part # 0620-0010-1000
Lockwasher (Int. Tooth) #8
$ 0.29 / each
Item 4
(on image above)
Part # 0150-0015-1000
Screw (Round Hd) Slotted #8-32 x 1/2Lg
$ 0.58 / each
Item 5
(on image above)
Part # 0135-0126-0100
Drive Magnet Assy (.250 Bore)
$ 34.69 / each
Item 6
(on image above)
Part # 0802-0043-1000
Housing (Rear)
$ 20.81 / each
Item 8
(on image above)
Part # 0135-0026-0100
Impeller (Molded) 2.625 Dia ( for #'s MDX )
$ 17.34 / each
Item 10
(on image above)
Part # 0135-0042-1000
Screw (Round Hd) Slotted #8-32 x 1/4Lg ( for #'s MDX-3 )
$ 0.87 / each
Item 11
(on image above)
Part # 0135-0007-1000
O-Ring (-040) 1/16CS x 2-7/8ID x 3OD
$ 3.47 / each
Item 12
(on image above)
Part # 0135-0118-1000
Housing (Front) 1/2 OD Inlet & Outlet
$ 13.88 / each
Item 13
(on image above)
Part # 0135-0117-1000
Housing (Front) 5/8 OD Inlet & Outlet
$ 9.25 / each
Item 14
(on image above)
Part # 0135-0012-1000
Nut (Wing) #10-32
$ 0.69 / each
Item 15
(on image above)
Part # 0802-0010-1000
Screw (Round Hd) Phillips #10-32 x 1-1/4Lg
$ 0.58 / each
