March Pump model AC-2CP Parts

PARTS LIST for March Pump model # AC-2CP Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

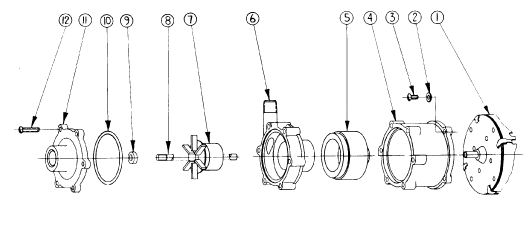

Blowup of AC-2CP

Item 1
(on image above)

Part # 0125-0052-1000

Motor (AC) 115V 50/60HZ 3500RPM SB (w/Base) 38Co

$ 127.19 / each

Item 2
(on image above)

Part # 0858-0004-1000

Washer (Flat) #8 (.177 ID) x 3/8OD x 1/32Thk

$ 0.29 / each

Item 3
(on image above)

Part # 0150-0015-1000

Screw (Round Hd) Slotted #8-32 x 1/2Lg

$ 0.58 / each

Item 4
(on image above)

Part # 0125-0069-1000

Bracket (Mtr)

$ 9.25 / each

Item 5
(on image above)

Part # 0125-0083-0100

Drive Magnet Assy (.250 Bore)

$ 34.69 / each

Item 6
(on image above)

Part # 0125-0058-1000

Housing (Rear) 1/4MPT Outlet

$ 10.41 / each

Item 7a
(on image above)

Part # 0125-0055-0100

Impeller (Molded Polypro/Teflon/Glass) 1.812 Dia

$ 20.81 / each

Item 7b
(on image above)

Part # 0125-0087-0200

Impeller (Encaps Polypro/Talc/Teflon) 1.820 Dia

$ 27.75 / each

Item 8
(on image above)

Part # 0125-0061-1000

Shaft

$ 10.41 / each

Item 9
(on image above)

Part # 0130-0028-1000

Thrust Washer (Front)

$ 4.62 / each

Item 10
(on image above)

Part # 0125-0065-1000

O-Ring, VITON, (-136) 3/32CS x 2ID x 2-3/16OD

$ 3.47 / each

Item 11
(on image above)

Part # 0125-0056-1000

Cover (Hsg) 3/8FPT x 3/4MPT Inlet

$ 8.67 / each

Item 12
(on image above)

Part # 0115-0062-1000

Screw (Thd-Forming) Hi-Low Pan Head Phillips #7-19

$ 0.58 / each
