March Pump model AC-2C Parts

PARTS LIST for March Pump model # AC-2C Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

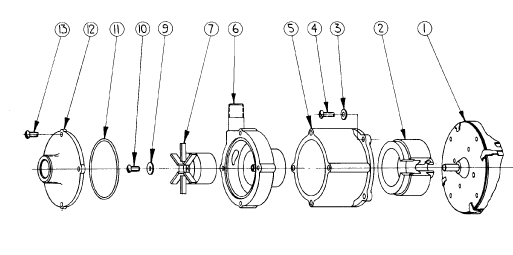

Blowup of AC-2C

Item 1
(on image above)

Part # 0125-0052-1000

Motor (AC) 115V 50/60HZ 3500RPM SB (w/Base) 38Co

$ 127.19 / each

Item 2
(on image above)

Part # 0125-0083-0100

Drive Magnet Assy (.250 Bore)

$ 34.69 / each

Item 3
(on image above)

Part # 0858-0004-1000

Washer (Flat) #8 (.177 ID) x 3/8OD x 1/32Thk

$ 0.29 / each

Item 4
(on image above)

Part # 0150-0015-1000

Screw (Round Hd) Slotted #8-32 x 1/2Lg

$ 0.58 / each

Item 5
(on image above)

Part # 0125-0051-1000

Bracket (Mtr) w/Inserts

$ 16.19 / each

Item 6
(on image above)

Part # 0125-0039-0100

Housing (Rear) & St'less Shaft Assy

$ 46.25 / each

Item ns
(on image above)

Part # 0135-0033-1000

Shaft

$ 20.81 / each

Item ns
(on image above)

Part # 0135-0041-1000

O-Ring, VITON (-007) 1/16CS x 5/32ID x 9/32OD

$ 2.89 / each

Item ns
(on image above)

Part # 0135-0044-1000

Washer (Flat) #8 (.171 ID) x 3/4OD x .032 Thk

$ 0.58 / each

Item ns
(on image above)

Part # 0135-0040-1000

Screw (Round Hd) Slotted #8-32 x 3/8Lg

$ 0.46 / each

Item 7
(on image above)

Part # 0125-0029-0100

Impeller (Molded) 1.825 Dia

$ 17.34 / each

Item 9
(on image above)

Part # 0135-0016-1000

Washer (Flat) #8 (.177 ID) x 7/16OD x .040 Thk

$ 0.93 / each

Item 10
(on image above)

Part # 0135-0042-1000

Screw (Round Hd) Slotted #8-32 x 1/4Lg

$ 0.87 / each

Item 11
(on image above)

Part # 0125-0015-1000

O-Ring, BUNA N, (-033) 1/16CS x 2ID x 2-1/8OD

$ 2.31 / each

Item 12
(on image above)

Part # 0125-0027-1000

Cover (Hsg) 3/8FPT x 3/4MPT Inlet

$ 13.88 / each

Item 13
(on image above)

Part # 0115-0023-1000

Screw (Pan Hd) Phillips #8-32 x 1-1/8Lg

$ 0.58 / each
