March Pump model 809 Parts

PARTS LIST for March Pump model # 809 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

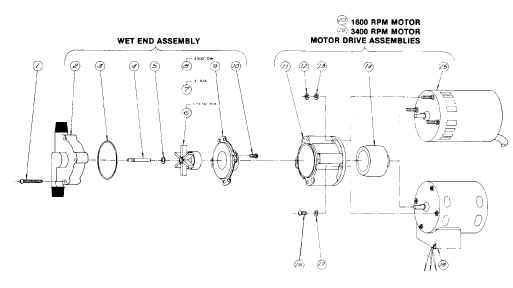

Blowup of 809

Item 2b
(on image above)

Part # 0809-0142-0000

Housing (Center Inlet) 3/4MPT Inlet x 1/2MPT O

$ 92.50 / each

Item 3
(on image above)

Part # 0809-0027-1000

O-Ring (-036) 1/16CS x 2-3/8ID x 2-1/2OD

$ 2.31 / each

Item 4a
(on image above)

Part # 0809-0008-1000

Shaft

$ 12.72 / each

Item 4b
(on image above)

Part # 0809-0161-1000

Shaft

$ 5.78 / each

Item 5
(on image above)

Part # 0809-0043-1000

Thrust Washer

$ 0.69 / each

Item 6
(on image above)

Part # 0809-0005-0200

Impeller (Molded) 1.687 Dia (S.S. Cover)

$ 23.12 / each

Item 7
(on image above)

Part # 0809-0005-0100

Impeller (Molded) 2.000 Dia (S.S. Cover)

$ 23.12 / each

Item 8
(on image above)

Part # 0809-0107-0200

Impeller (Molded) 2.156 Dia (S.S. Cover)

$ 27.75 / each

Item 9
(on image above)

Part # 0809-0012-1000

Housing (Rear)

$ 13.88 / each

Item 10
(on image above)

Part # 0135-0040-1000

Screw (Round Hd) Slotted #8-32 x 3/8Lg

$ 0.46 / each

Item 11
(on image above)

Part # 0809-0058-1000

Bracket (Mtr) w/Inserts

$ 17.34 / each

Item 12
(on image above)

Part # 0410-0039-1000

Nut (Hex) #8-32

$ 0.29 / each

Item 13
(on image above)

Part # 0620-0010-1000

Lockwasher (Int. Tooth) #8

$ 0.29 / each

Item 14
(on image above)

Part # 0125-0083-0100

Drive Magnet Assy (.250 Bore)

$ 34.69 / each

Item 15
(on image above)

Part # 0809-0090-1000

Motor (AC) 115V 50/60HZ 3500RPM SB (No Base) Condu

$ 129.50 / each

Item 16
(on image above)

Part # 0135-0040-1000

Screw (Round Hd) Slotted #8-32 x 3/8Lg

$ 0.46 / each

Item 18
(on image above)

Part # 0809-0064-1000

Motor (AC) 115V 50/60HZ 1750RPM SB (No Base) Condu

$ 107.53 / each
