MP Pump # 34310 Parts Order page  Download Parts PDF Specsheet( Click Here for the MP Pump # 34310 Product Page ) |
|

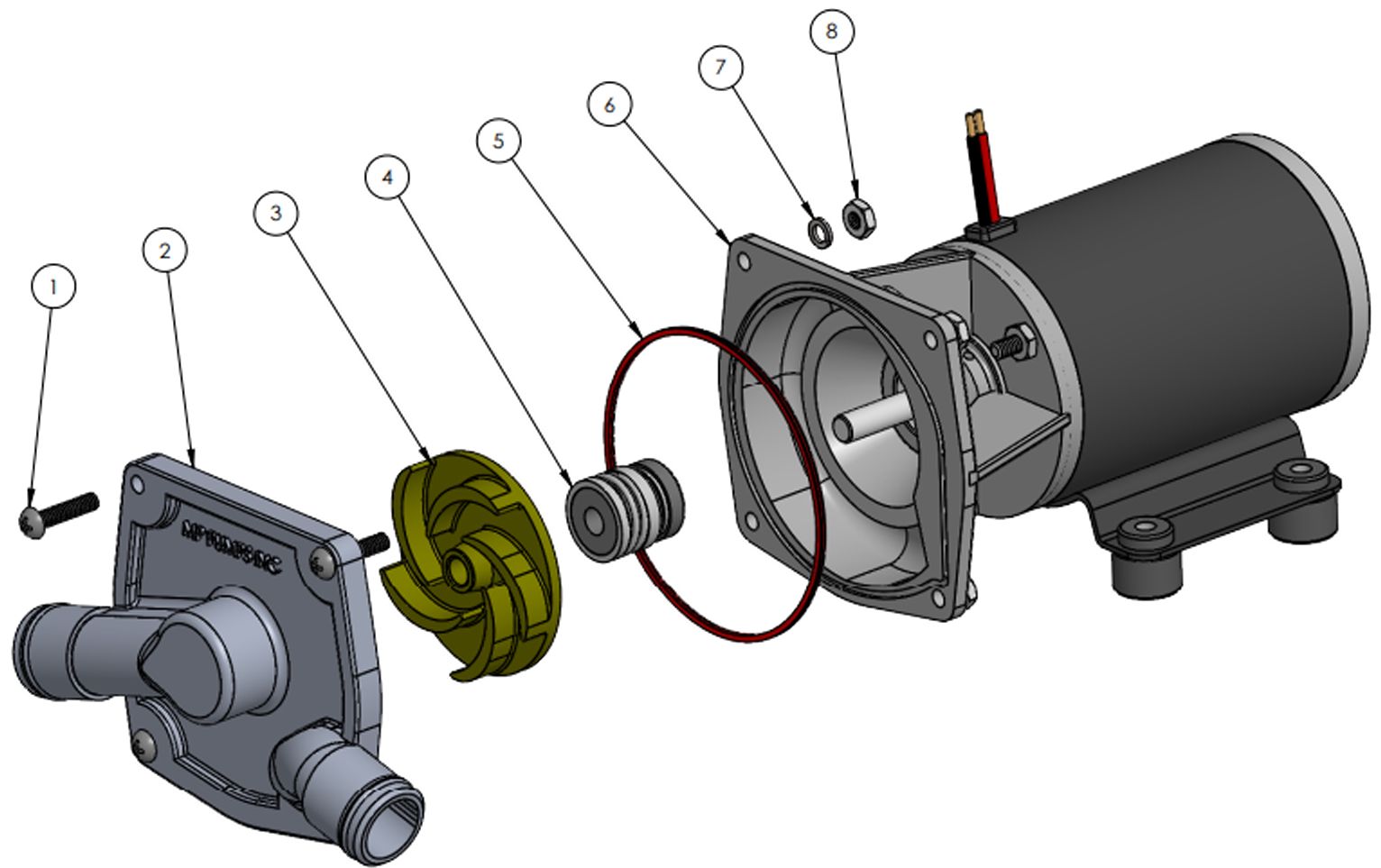

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for MP Pump model # 34310 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 34300 | CAPSCREW #10-24 | $0.75 | 0 in Stock | 4 | ||
| 2 | # 34305 | VOLUTE COVER | $53.77 | 0 in Stock | 1 | ||
| 3 | # 21587 | IMPELLER R.R. 02.50 | $22.78 | 0 in Stock | 1 | ||
| 4 | # 28984 | SEAL ASSEMBLY | $26.22 | 2 in Stock | 1 | ||
| 5 | # 34301 | QUAD RING | $6.49 | 0 in Stock | 1 | ||
| 6 | # 34307 | ELECTRIC MOTOR | $253.16 | 1 in Stock | 1 | ||
| 7 | # 21621 | LOCKWASHER | $0.18 | 0 in Stock | 4 | ||
| 8 | # 31767 | HEX NUT | $0.19 | 0 in Stock | 4 | ||
