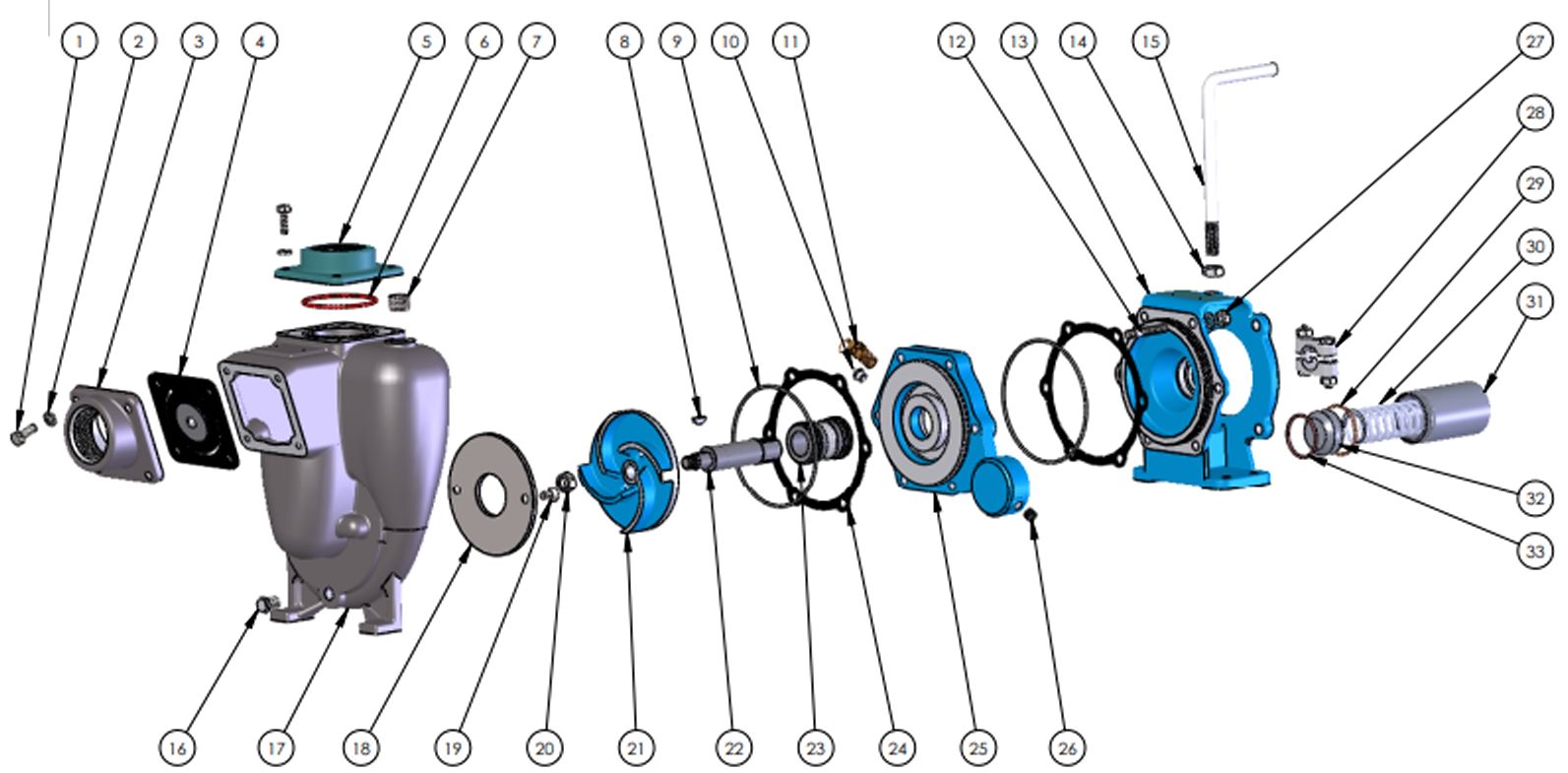

Parts List for MP Pump model # 33202
Key Part # Description Price Stock Required Quantity Action
1 # 21242 CAP SCREW HH 5/16-18 X 7/8 $2.54 6 in Stock 8
2 # 21238 LOCKWASHER 5/16 X 18 $0.22 4 in Stock 14
3 # 22387 SUCTION FLANGE $48.72 7 in Stock 1
4 # 23022 FLAPPER ASSEMBLY $47.69 0 in Stock 1
5 # 22311 DISCHARGE FLANGE $41.91 18 in Stock 1
6 # 37141 O-RING AS-568-151 $7.62 26 in Stock 1
7 # 37140 PIPE PLUG $3.58 0 in Stock 1
8 # 21163 WOODRUFF KEY 5/8x5/32 $6.65 0 in Stock 1
9 # 36910 O-RING $1.57 0 in Stock 2
11 # 31733 RELIEF VALVE 1/4 inch NPT $58.88 0 in Stock 1
12 # 33201 STUD 5/16-18X2.13 $18.59 0 in Stock 6
13 # 25904 ADAPTOR $394.43 1 in Stock 1
14 # 22637 HEX JAM NUT 1/2-13 $0.93 0 in Stock 1
15 # 21938 HANDLE $54.57 1 in Stock 1
16 # 41475 PIPE PLUG 1/4 NPT $2.04 0 in Stock 1
17 # 22251 HOUSING $443.03 0 in Stock 1
18 # 22260 WEAR PLATE $38.88 3 in Stock 1
19 # 37137 SCREW FHS 5/16-18 X 5/8 $1.98 0 in Stock 2
20 # 22621 HEX JAM NUT 1/2-20 $7.07 1 in Stock 1
21 # 28512 IMPELLER $235.07 0 in Stock 1
22 # 33204 DRIVE SLEEVE $149.18 0 in Stock 1
23 # 33176 SEAL ASSEMBLY DBL $567.35 0 in Stock 1
24 # 22255 GASKET $5.16 38 in Stock 2
25 # 38357 ADAPTER $380.87 0 in Stock 1
27 # 21284 HEXNUT $0.44 3 in Stock 6
28 # 23003 CLAMP ASSEMBLY $51.31 1 in Stock 1
29 # 38363 O-RING AS-586-032 $2.66 0 in Stock 1
30 # 38358 SPRING $20.75 0 in Stock 1
31 # 38361 RESERVOIR $116.40 0 in Stock 1
