Key	Part #	Description	Price	Stock	Required

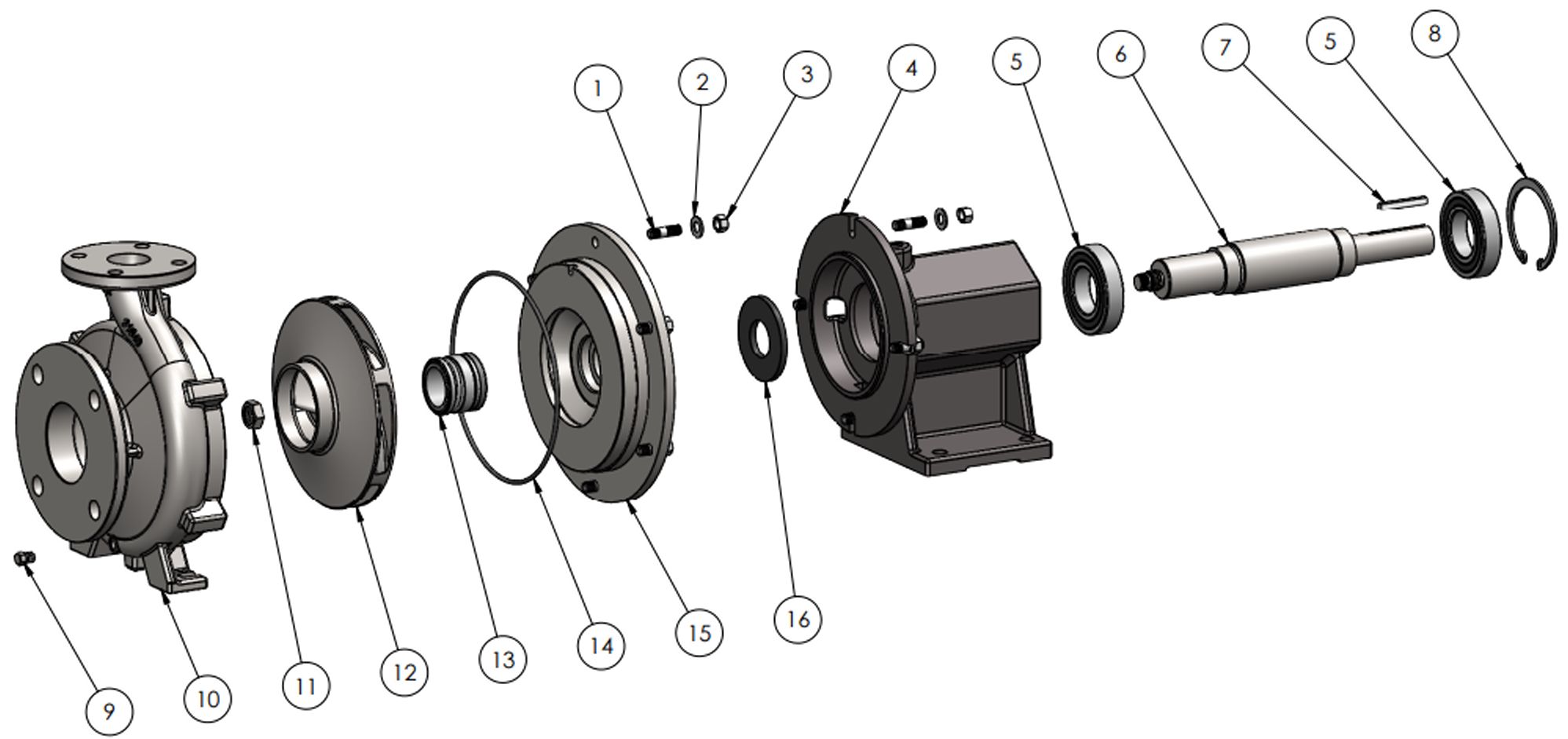

Parts List for MP Pump model # 31805
1	# 21260	STUD 3/8-16X1.32	$14.92	4 in Stock	10

2	# 28053	FLAT WASHER	$0.67	0 in Stock	10

3	# 21268	HEXNUT 3/8-16	$2.11	8 in Stock	10

4	# 31656	BEARING HOUSING	$1037.49	0 in Stock	1

5	# 31804	BALL BEARING	$89.17	2 in Stock	2

6	# 31802	DRIVE SHAFT	$1004.72	0 in Stock	1

7	# 33232	SQUARE KEY	$2.74	0 in Stock	1

8	# 31803	SNAP RING	$17.09	0 in Stock	1

9	# 21255	PIPE PLUG 1/8 inch NPT	$11.94	0 in Stock	2

10	# 31650	VOLUTE	$2646.85	0 in Stock	1

11	# 29194	HEX JAM NUT 5/8-18	$14.78	3 in Stock	1

12	# 31648	IMPELLER	$996.81	0 in Stock	1

13	# 31374	SEAL ASSEMBLY	$224.90	3 in Stock	1

14	# 31430	O-RING	$27.47	0 in Stock	1

15	# 31426	SEAL HOUSING	$2725.97	0 in Stock	1

16	# 37881	SLINGER	$16.28	0 in Stock	1
