MP Pump # 31114 Parts Order page  Download Parts PDF Specsheet( Click Here for the MP Pump # 31114 Product Page ) |
|

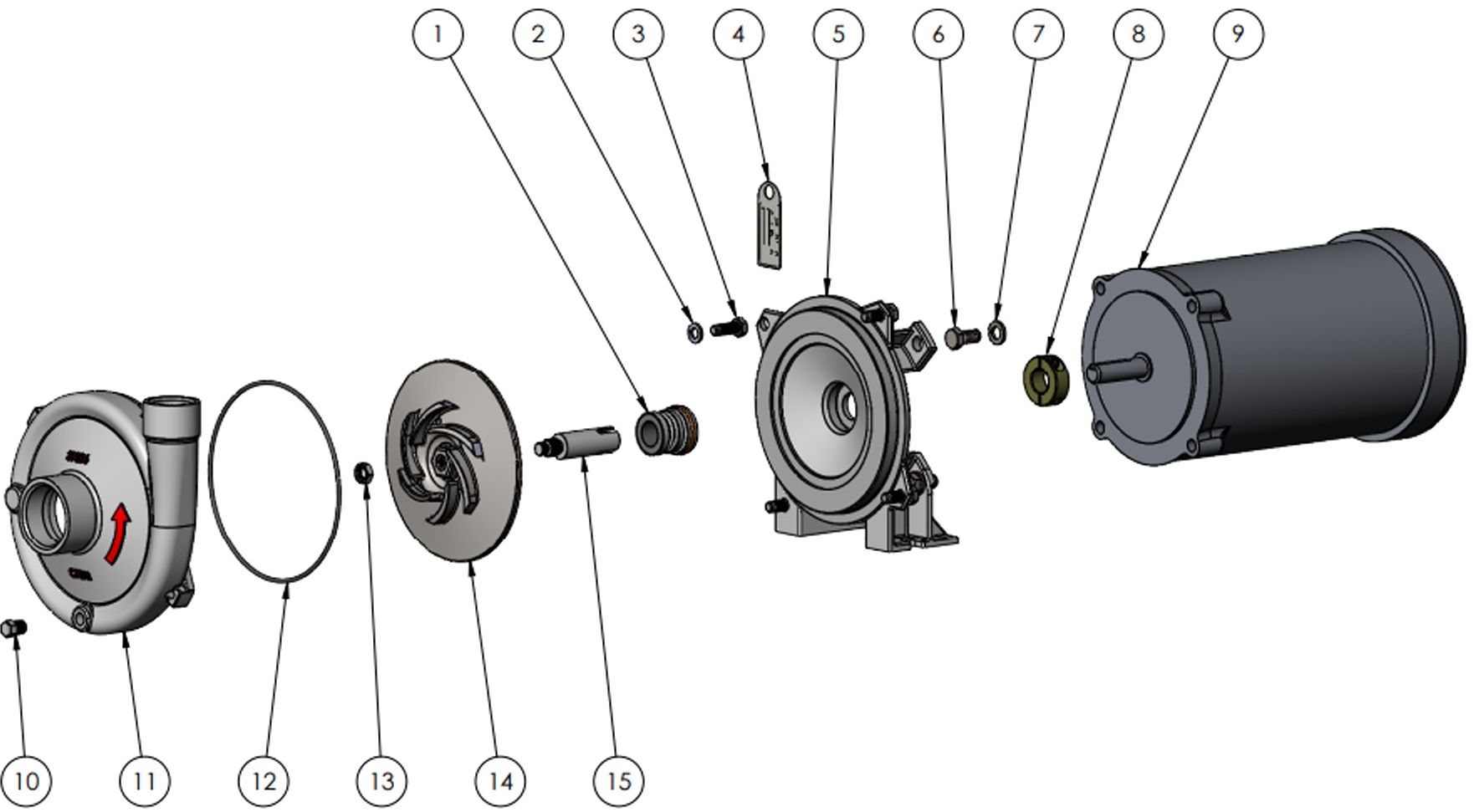

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for MP Pump model # 31114 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 30061 | SEAL ASSEMBLY T-2100 | $123.19 | 2 in Stock | 1 | ||
| 2 | # 21238 | LOCKWASHER 5/16 X 18 | $0.22 | 4 in Stock | 4 | ||
| 3 | # 21242 | CAP SCREW HH 5/16-18 X 7/8 | $2.54 | 6 in Stock | 4 | ||
| 6 | # 25663 | CAPSCREW 3/8-16X3/4 | $4.16 | 0 in Stock | 4 | ||
| 7 | # 21266 | LOCKWASHER 3/8 X 1/8 | $0.98 | 2 in Stock | 4 | ||
| 8 | # 28049 | CLAMP | $45.32 | 0 in Stock | 1 | ||
| 9 | # 25234 | ELECTRIC MOTOR 56C | $819.37 | 1 in Stock | 1 | ||
| 10 | # 21255 | PIPE PLUG 1/8 inch NPT | $11.94 | 0 in Stock | 1 | ||
| 11 | # 39027 | HOUSING CF1-2 | $747.04 | 0 in Stock | 1 | ||
| 12 | # 29715 | O-RING AS 568-162 | $11.65 | 19 in Stock | 1 | ||
| 13 | # 35598 | HEX JAM NUT Stainless Steel 3/8-24 | $3.17 | 0 in Stock | 1 | ||
| 14 | # 30233 | IMPELLER 3.60 | $1249.56 | 0 in Stock | 1 | ||
| 15 | # 29785 | DRIVE SLEEVE | $106.24 | 1 in Stock | 1 | ||
