MP Pump # 30970 Parts Order page

PDF-icondownload-iconDownload Parts PDF Specsheet
( Click Here for the MP Pump # 30970 Product Page )
Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

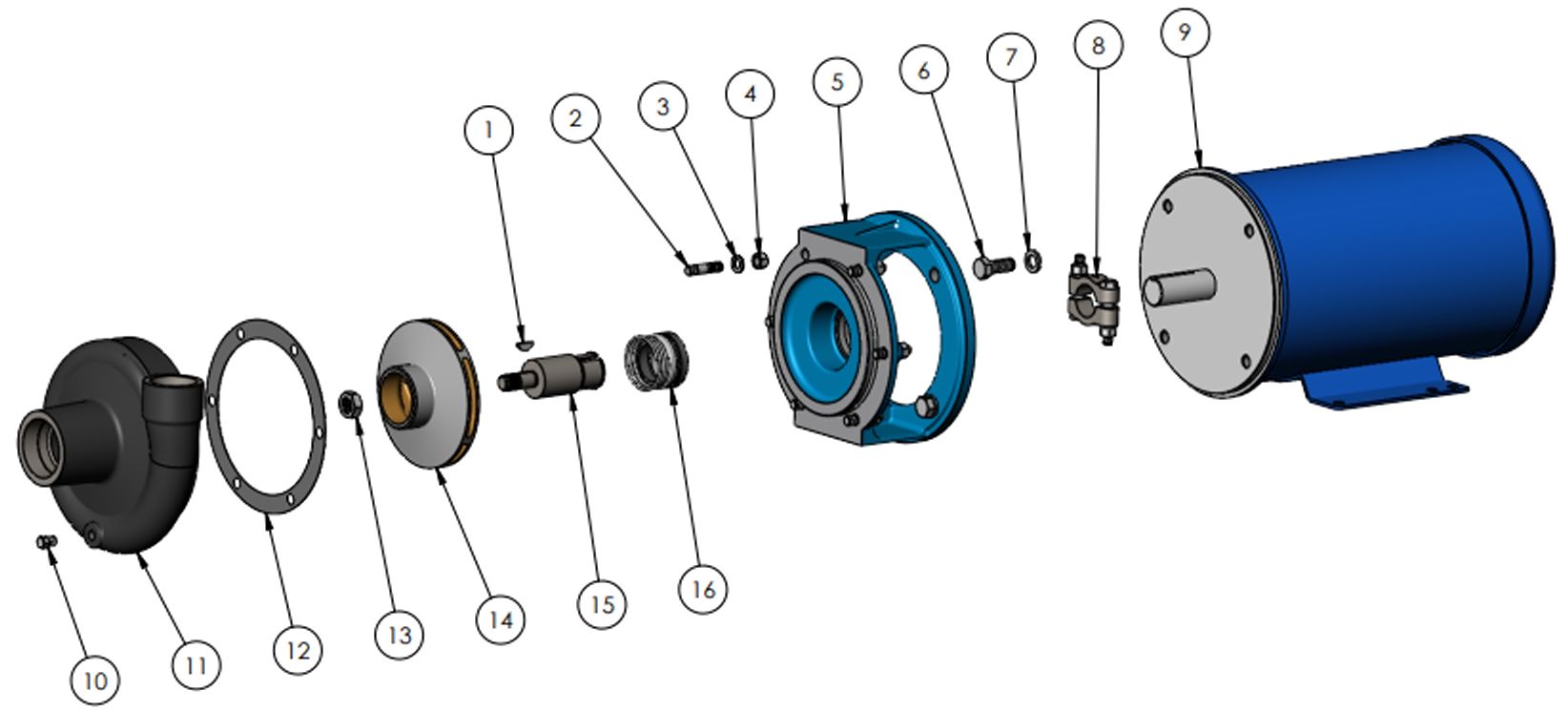

Parts List for MP Pump model # 30970
Key Part # Description Price Stock Required Quantity Action
1 # 21762 WOODRUFF KEY size 8 $13.24 2 in Stock 1
2 # 21261 STUD Stainless Steel 3/8-16X1.63 $15.20 4 in Stock 6
3 # 21266 LOCKWASHER 3/8 X 1/8 $0.98 2 in Stock 6
4 # 21268 HEXNUT 3/8-16 $2.11 8 in Stock 6
5 # 22433 ADAPTOR $614.81 0 in Stock 1
6 # 21246 CAPSCREW 1/2-13X1.25 $9.65 0 in Stock 4
7 # 21254 LOCKWASHER 1/7 $2.04 0 in Stock 4
8 # 23039 CLAMP ASSEMBLY $73.57 6 in Stock 1
9 # 22414 ELECTRIC MOTOR $1954.06 1 in Stock 1
10 # 21585 PIPE PLUG 1/8 NPT $1.12 0 in Stock 2
11 # 26587 HOUSING S-120 $561.70 0 in Stock 1
12 # 25662 GASKET $17.74 6 in Stock 1
13 # 22655 HEX JAM NUT $6.97 20 in Stock 1
14 # 30969 IMPELLER MACH 5.70 $1142.95 0 in Stock 1
15 # 22679 DRIVE SLEEVE $253.16 0 in Stock 1
16 # 22361 SEAL ASSEMBLY $137.88 101 in Stock 1
