MP Pump # 30011 Parts Order page  Download Parts PDF Specsheet( Click Here for the MP Pump # 30011 Product Page ) |
|

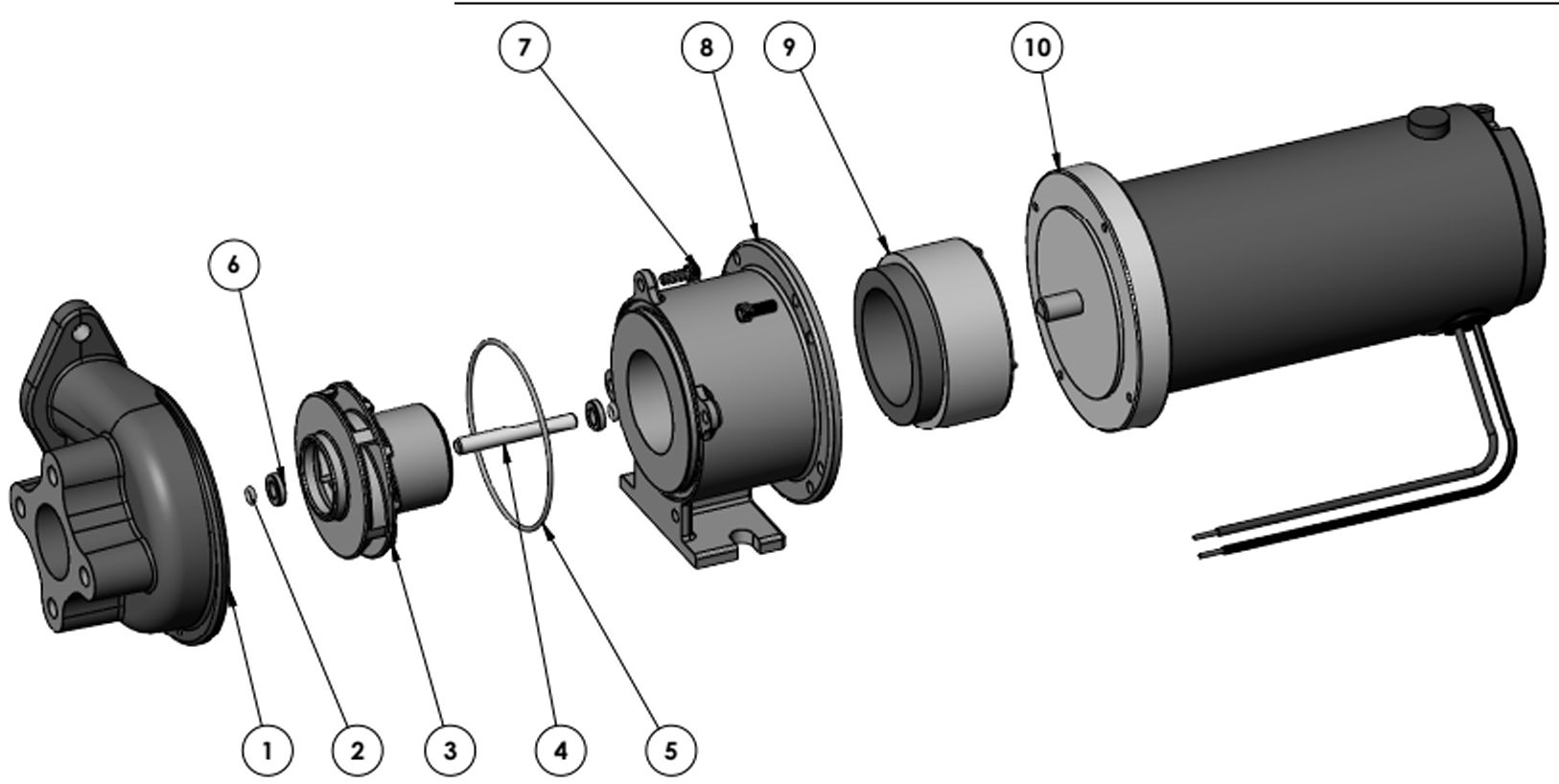

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for MP Pump model # 30011 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 39506 | HOUSING | $285.45 | 0 in Stock | 1 | ||
| 2 | # 39512 | O-RING AS-568-007 | $0.93 | 0 in Stock | 2 | ||
| 3 | # 39511 | ROTOR ASSEMBLY | $300.35 | 0 in Stock | 1 | ||
| 4 | # 39510 | DOWEL PIN | $6.58 | 0 in Stock | 1 | ||
| 5 | # 30622 | O-RING | $10.10 | 0 in Stock | 1 | ||
| 6 | # 39509 | THRUST WASHER | $12.12 | 0 in Stock | 2 | ||
| 7 | # 30297 | SOCKET HEAD CAPSCREW | $1.09 | 0 in Stock | 8 | ||
| 8 | # 30603 | ADAPTER | $293.48 | 0 in Stock | 1 | ||
| 9 | # 30769 | DRIVE MAGNET | $159.36 | 0 in Stock | 1 | ||
| 10 | # 30270 | MOTOR 24 VDC | $891.89 | 1 in Stock | 1 | ||
