MP Pump # 27234 Parts Order page

Download Parts PDF Specsheet
( Click Here for the MP Pump # 27234 Product Page )

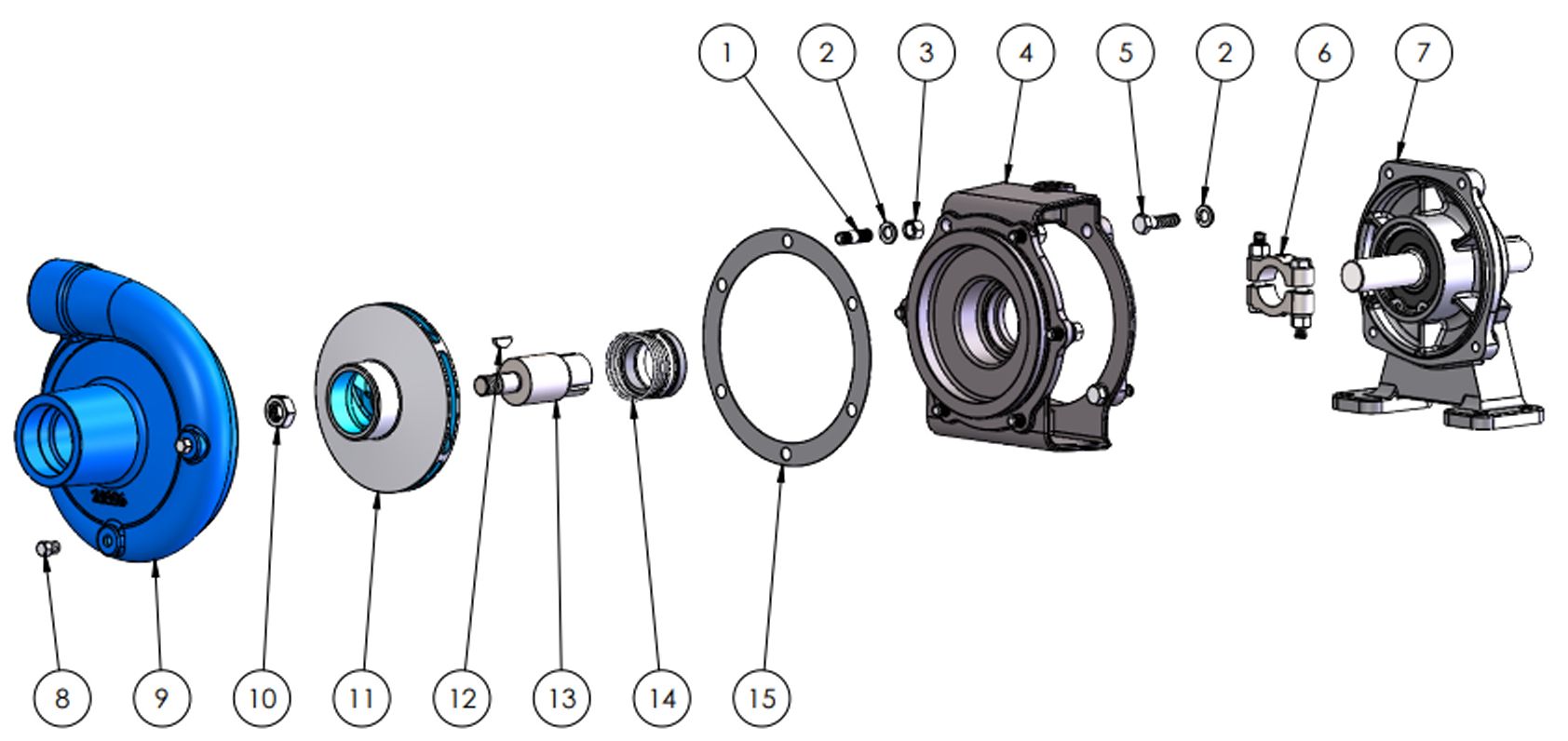

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	Part #	Description	Price	Stock	Required
Parts List for MP Pump model # 27234
1	# 21260	STUD 3/8-16X1.32	$14.92	4 in Stock	6

2	# 21266	LOCKWASHER 3/8 X 1/8	$0.98	2 in Stock	10

3	# 21268	HEXNUT 3/8-16	$2.11	8 in Stock	6

4	# 22348	ADAPTER	$386.52	5 in Stock	1

5	# 21259	CAPSCREW 3/8-16	$5.93	0 in Stock	4

6	# 23039	CLAMP ASSEMBLY	$73.57	6 in Stock	1

7	# 26163	PEDESTAL ASSEMBLY	$446.42	0 in Stock	1

8	# 21585	PIPE PLUG 1/8 NPT	$1.12	0 in Stock	2

9	# 26587	HOUSING S-120	$561.70	0 in Stock	1

10	# 22655	HEX JAM NUT	$6.97	20 in Stock	1

11	# 27027	IMPELLER	$736.87	0 in Stock	1

12	# 21762	WOODRUFF KEY size 8	$13.24	2 in Stock	1

13	# 22700	DRIVE SLEEVE	$232.82	4 in Stock	1

14	# 22361	SEAL ASSEMBLY	$137.88	101 in Stock	1

15	# 25662	GASKET	$17.74	6 in Stock	1
