MP Pump # 27128 Parts Order page

PDF-icondownload-iconDownload Parts PDF Specsheet
( Click Here for the MP Pump # 27128 Product Page )
Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

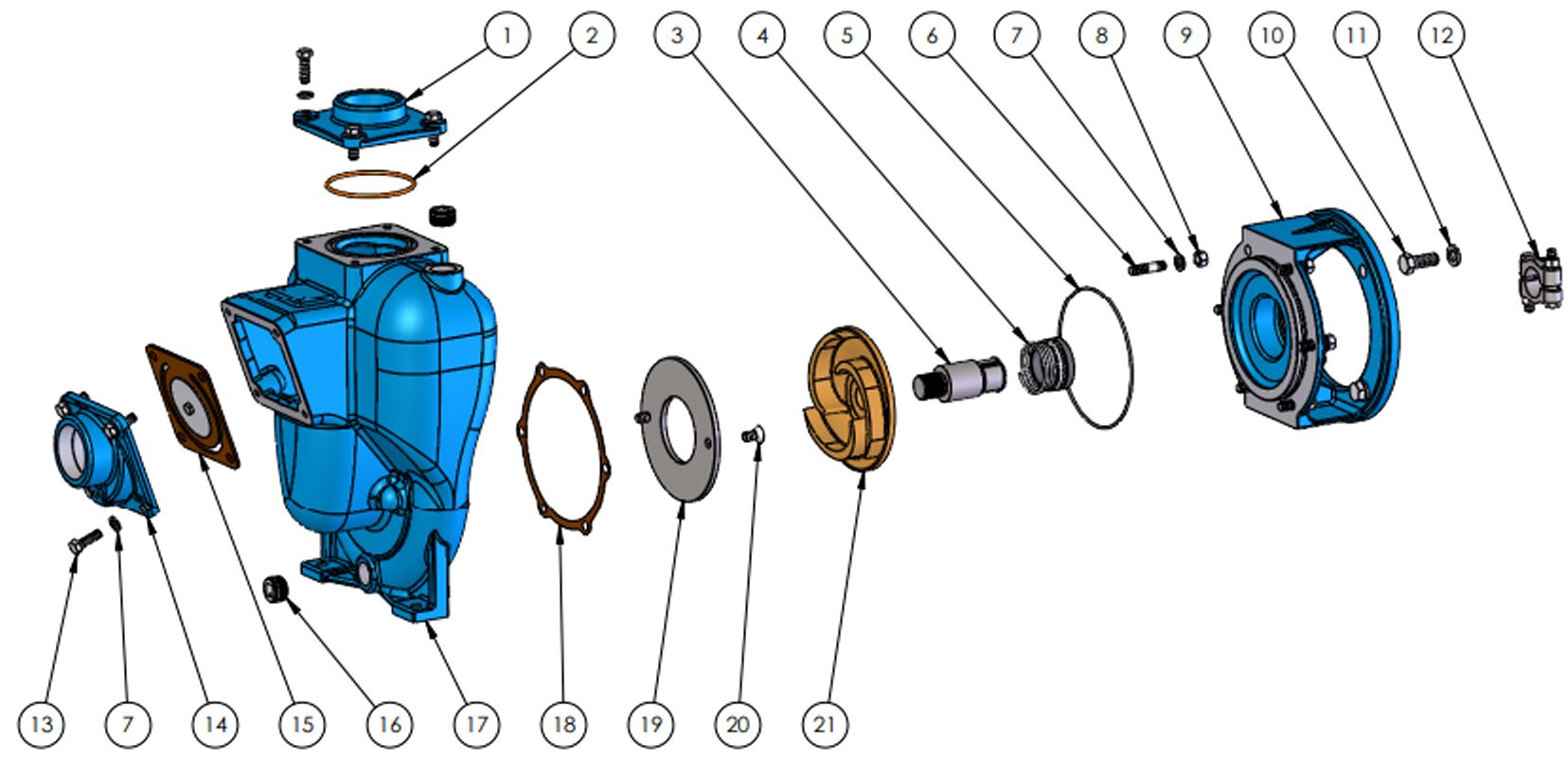

Parts List for MP Pump model # 27128
Key Part # Description Price Stock Required Quantity Action
1 # 22372 DISCHARGE FLANGE 2 inch NPT $49.84 32 in Stock 1
2 # 37138 O-RING $10.30 25 in Stock 1
3 # 22435 DRIVE SLEEVE $219.25 5 in Stock 1
5 # 29715 O-RING AS 568-162 $11.65 19 in Stock 1
6 # 21261 STUD Stainless Steel 3/8-16X1.63 $15.20 4 in Stock 6
7 # 21266 LOCKWASHER 3/8 X 1/8 $0.98 2 in Stock 14
8 # 21268 HEXNUT 3/8-16 $2.11 8 in Stock 6
10 # 21246 CAPSCREW 1/2-13X1.25 $9.65 0 in Stock 4
11 # 21254 LOCKWASHER $2.04 0 in Stock 4
13 # 21291 CAPSCREW 3/8-16X1.13 $5.11 0 in Stock 8
14 # 22369 SUCTION FLANGE $56.40 32 in Stock 1
15 # 23040 FLAPPER ASSEMBLY $111.21 13 in Stock 1
16 # 41481 PIPE PLUG $4.95 0 in Stock 2
18 # 22240 GASKET $6.97 46 in Stock 1
19 # 22244 WEAR PLATE $46.57 6 in Stock 1
20 # 37115 SCREW FHS 3/8-16X3/4 $2.51 0 in Stock 2
21 # 22498 IMPELLER $1322.30 3 in Stock 1
