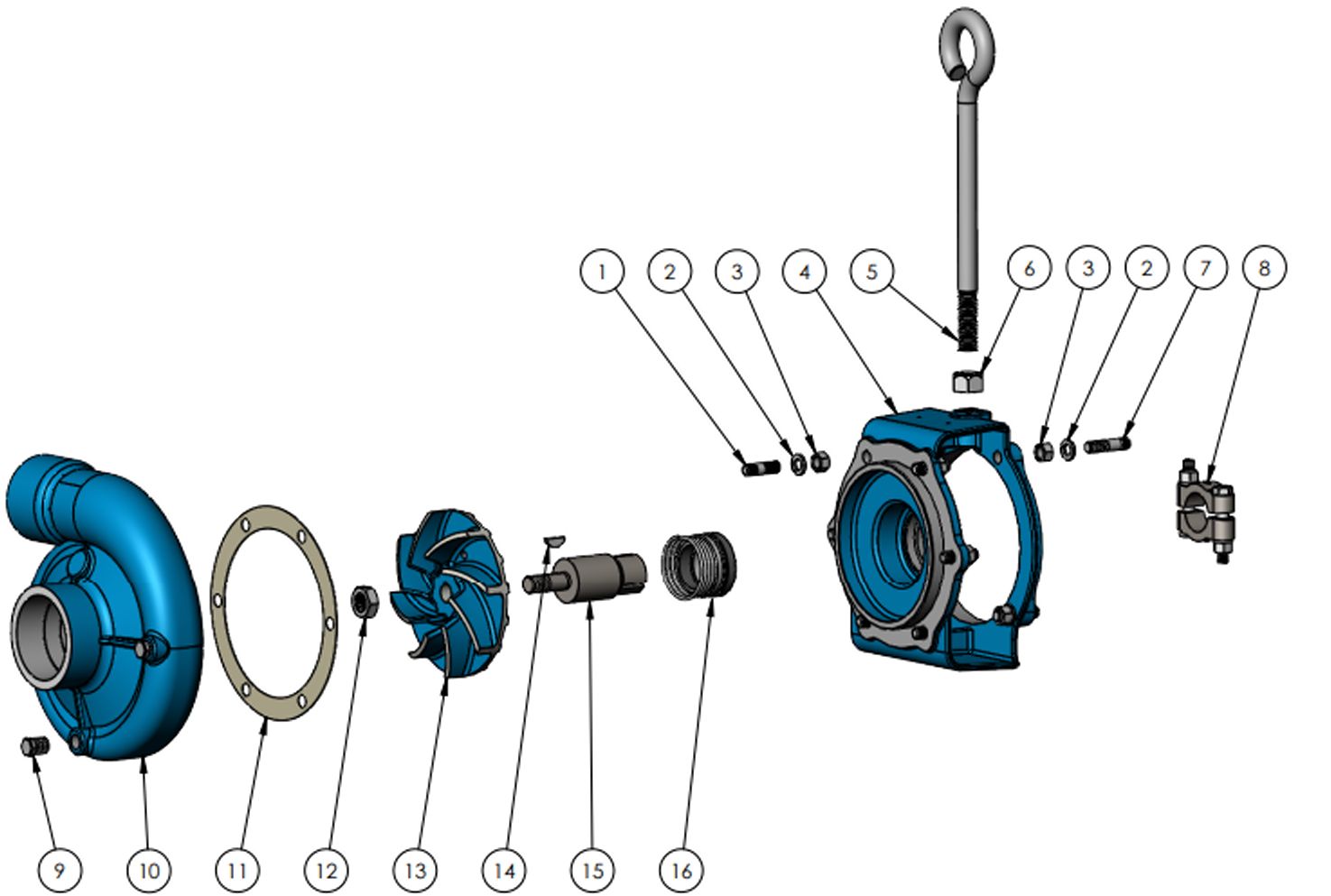

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	Part #	Description	Price	Stock	Required
Parts List for MP Pump model # 23248
1	# 21260	STUD 3/8-16X1.32	$14.92	4 in Stock	6

2	# 21266	LOCKWASHER 3/8 X 1/8	$0.98	2 in Stock	10

3	# 21268	HEXNUT 3/8-16	$2.11	8 in Stock	10

4	# 22704	S200 ADAPTER	$793.38	0 in Stock	1

5	# 22460	UFT EYE	$57.63	0 in Stock	1

6	# 22461	HEX NUT	$1.57	0 in Stock	1

7	# 21261	STUD Stainless Steel 3/8-16X1.63	$15.20	4 in Stock	4

8	# 23039	CLAMP ASSEMBLY	$73.57	6 in Stock	1

9	# 41475	PIPE PLUG 1/4 NPT	$2.04	0 in Stock	2

10	# 21203	HOUSING 2.5X2	$632.90	0 in Stock	1

11	# 21216	GASKET	$8.23	6 in Stock	1

12	# 22655	HEX JAM NUT	$6.97	20 in Stock	1

13	# 22692	IMPELLER	$541.35	0 in Stock	1

14	# 21762	WOODRUFF KEY size 8	$13.24	2 in Stock	1

15	# 22700	DRIVE SLEEVE	$232.82	4 in Stock	1

16	# 22361	SEAL ASSEMBLY	$137.88	101 in Stock	1
