MP Pump # 23221 Parts Order page( Click Here for the MP Pump # 23221 Product Page ) |
|

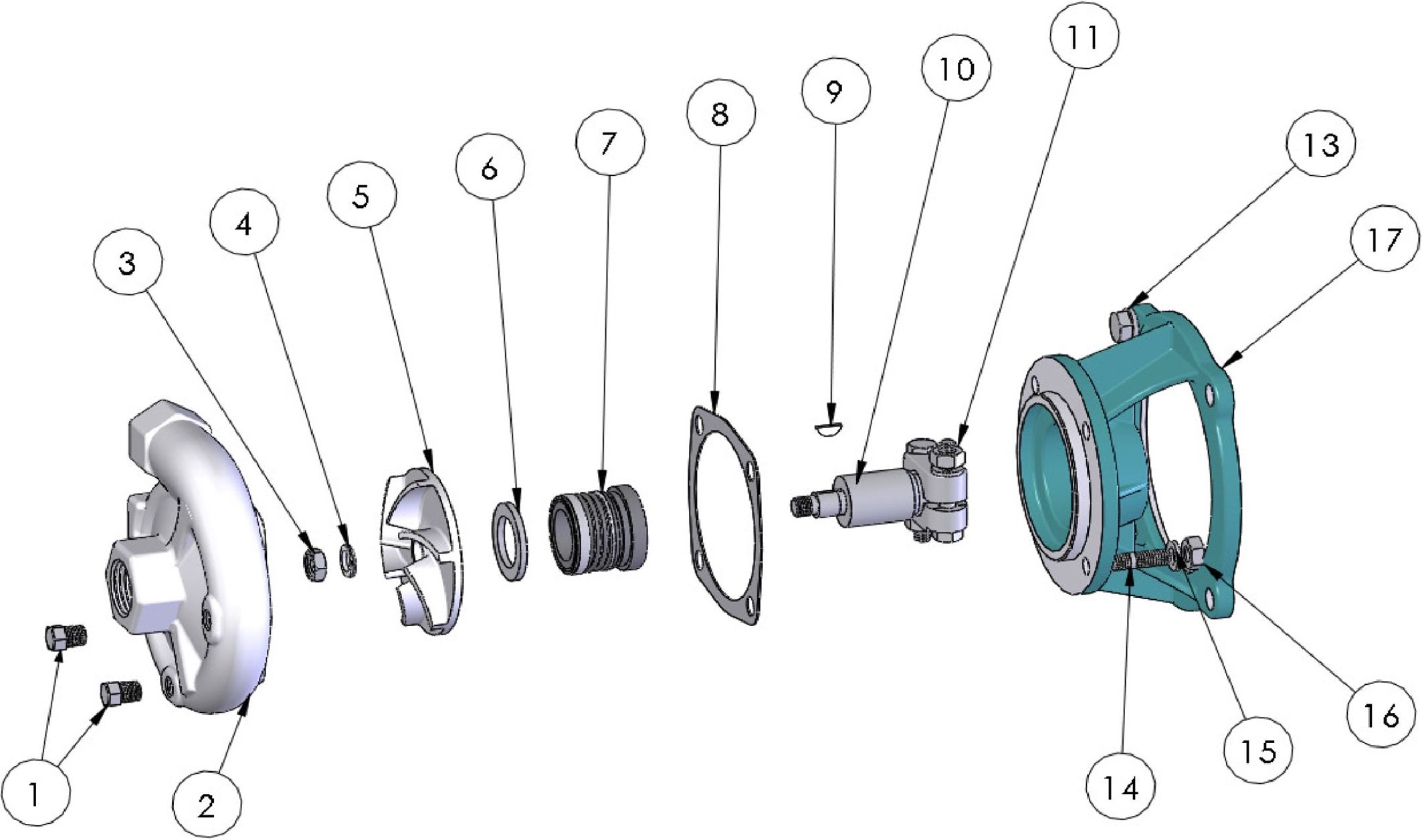

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for MP Pump model # 23221 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 21185 | PIPE PLUG B - 1/8 NPT | $6.49 | 0 in Stock | 2 | ||
| 2 | # 21107 | HOUSING D - 1X3/4 | $265.59 | 0 in Stock | 1 | ||
| 3 | # 22588 | LOCK NUT Stainless Steel - 3/8-24 | $14.10 | 1 in Stock | 1 | ||
| 4 | # 31224 | LOCK WASHER Stainless Steel - SELF LOCKING | $21.97 | 0 in Stock | 1 | ||
| 5 | # 22573 | IMPELLER C - 3.25 | $165.01 | 6 in Stock | 1 | ||
| 6 | # 31103 | WASHER Stainless Steel | $12.51 | 0 in Stock | 1 | ||
| 7 | # 22272 | SEAL ASSEMBLY T-2100 - VITON | $77.53 | 71 in Stock | 1 | ||
| 8 | # 21126 | GASKET - NI-2085 | $3.31 | 6 in Stock | 1 | ||
| 9 | # 21865 | KEY Stainless Steel - WOODRUFF #2 | $7.76 | 1 in Stock | 1 | ||
| 10 | # 22131 | DRIVE SLEEVE | $141.27 | 3 in Stock | 1 | ||
| 11 | # 23002 | CLAMP ASSEMBLY Stainless Steel - 5/8 & 3/4 | $47.24 | 9 in Stock | 1 | ||
| 12 | # 21251 | HEX HD SCREW Stainless Steel - 5/16-18 X .88 | $4.16 | 0 in Stock | 4 | ||
| 13 | # 21266 | LOCKWASHER Stainless Steel - 3/8 | $0.98 | 2 in Stock | 4 | ||
| 14 | # 28059 | STUD Stainless Steel - 5/16 118 X 1.19 | $7.72 | 0 in Stock | 4 | ||
| 15 | # 22163 | LOCK WASHER Stainless Steel - 5/16 X 1 /8 | $185.71 | 0 in Stock | 6 | ||
| 16 | # 21284 | HEX NUT - 5/16-18 | $0.44 | 3 in Stock | 6 | ||
| 17 | # 22130 | ADAPTOR- CAST IRON | $455.46 | 0 in Stock | 1 | ||
