MP Pump # 22737 Parts Order page( Click Here for the MP Pump # 22737 Product Page ) |
|

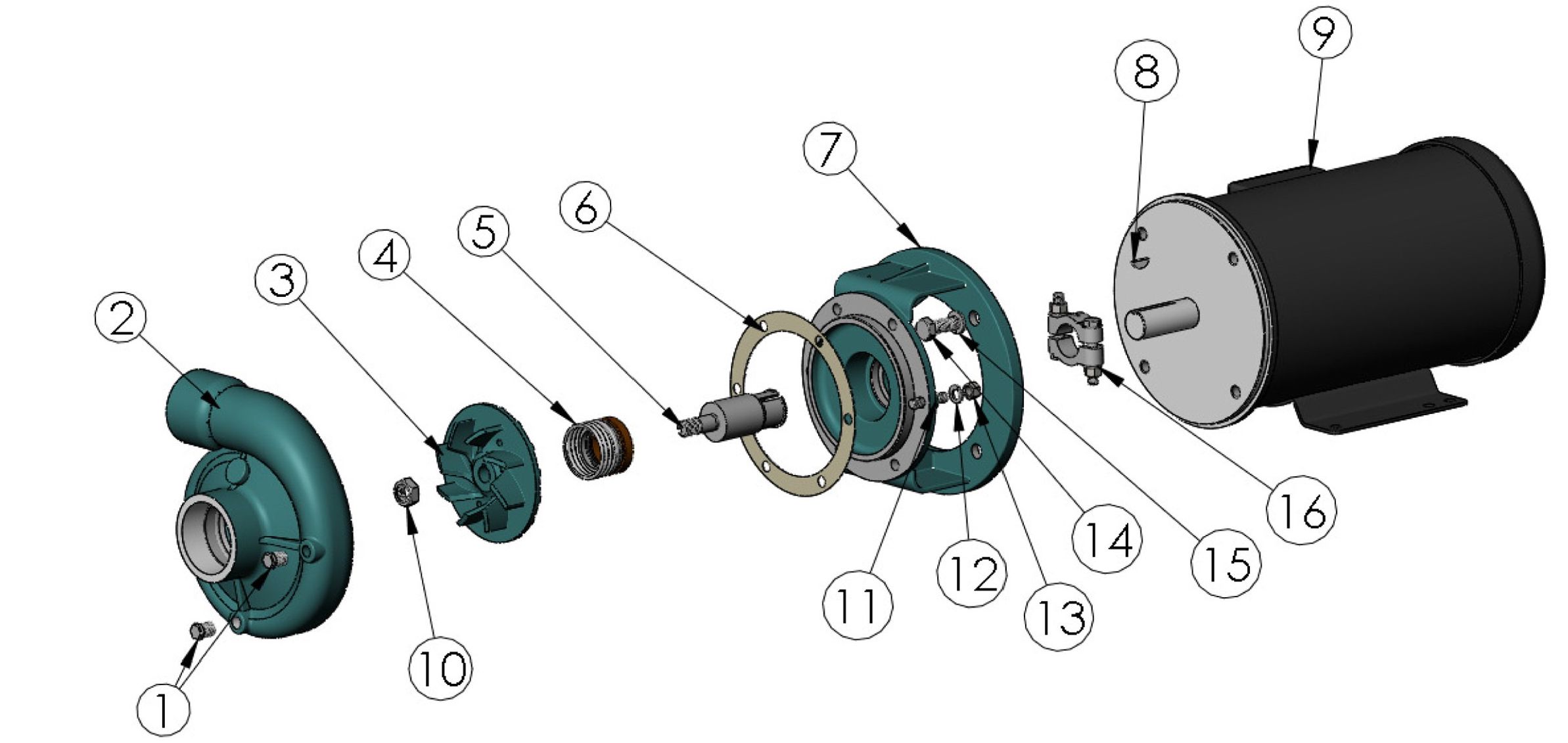

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for MP Pump model # 22737 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 41475 | PIPE PLUG - Steel 1/4 N.P.T. | $2.04 | 0 in Stock | 2 | ||
| 2 | # 21203 | HOUSING Cast Iron | $632.90 | 0 in Stock | 1 | ||
| 3 | # 25026 | IMPELLER Cast Iron - 4.12 DIA. | $489.36 | 0 in Stock | 1 | ||
| 5 | # 22679 | DRIVE SLEEVE - Stainless Steel 1.13 I.D. | $253.16 | 0 in Stock | 1 | ||
| 6 | # 21216 | GASKET - .032 THK. NI-2085 | $8.23 | 6 in Stock | 1 | ||
| 7 | # 22682 | ADAPTOR Cast Iron | $987.77 | 0 in Stock | 1 | ||
| 8 | # 21762 | WOODRUFF KEY - Stainless Steel #8 | $13.24 | 2 in Stock | 1 | ||
| 9 | # 22414 | ELECTRIC MOTOR - 184TC 5HP, 3PH. | $1954.06 | 1 in Stock | 1 | ||
| 10 | # 22655 | HEX JAM NUT-S.S. 5/8-18 | $6.97 | 20 in Stock | 1 | ||
| 11 | # 21261 | STUD Stainless Steel -3/8-16 X 1.63 | $15.20 | 4 in Stock | 6 | ||
| 12 | # 21266 | LOCK WASHER Stainless Steel - 3/8 | $0.98 | 2 in Stock | 8 | ||
| 13 | # 21268 | HEXNUT Stainless Steel -3/8-16 | $2.11 | 8 in Stock | 8 | ||
| 14 | # 21246 | HH CAPSCREW Stainless Steel - 1/2-13 X 1.25 | $9.65 | 0 in Stock | 4 | ||
| 15 | # 21254 | LOCK WASHER Stainless Steel -1/2 | $2.04 | 0 in Stock | 4 | ||
| 16 | # 23039 | CLAMP ASSEMBLY. Stainless Steel | $73.57 | 6 in Stock | 1 | ||
