Little Giant Pump model 583513 Parts

PARTS LIST for Little Giant Pump model # 583513 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Little Giant Pump 583513 Product Page )

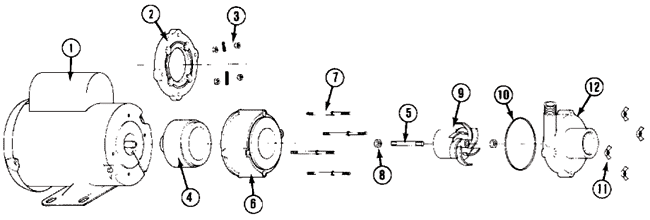

Blowup of 583513

Item 4
(on image above)

Part # 183602

Drive Magnet Assembly

$ 116.20 / each

Item 5
(on image above)

Part # 180057

Shaft, Impeller

$ 98.00 / each

Item 6
(on image above)

Part # 182005

Housing, Magnet

$ 63.55 / each

Item 7
(on image above)

Stud, Collared

$ 11.16 / each

Item 8
(on image above)

Washers, Thrust

$ 28.28 / each

Item 9
(on image above)

Part # 183139

Impeller Assembly

$ 204.40 / each

Item 10
(on image above)

O-ring (buna-n)

$ 12.26 / each

Item 11
(on image above)

Nut, Wing #8-32

$ 10.04 / each

Item 12
(on image above)

Part # 183065

Volute

$ 89.60 / each
