Johnson Pump # 10-24398-01 Parts Order page( Click Here for the Johnson Pump # 10-24398-01 Product Page ) |
|

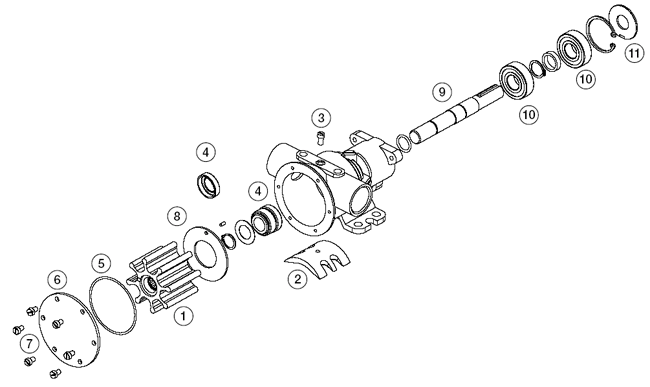

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Johnson Pump model # 10-24398-01 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT | # 09-45592 | Service kit ( includes Impeller, Seal, Gasket or O-Ring, and Endcover screws ) | $172.59 | 2 in Stock | 1 | ||
| 1 | # 09-1028BT-1 | Impeller | $59.42 | 56 in Stock | 1 | ||
| 2 | # 01-42679 | Cam | $68.03 | 20 in Stock | 1 | ||
| 3 | # 01-46794-01 | Cam screw | $7.09 | 12 in Stock | 1 | ||
| 4 | # 0.2233.252 | Seal | $25.96 | 6 in Stock | 1 | ||
| 5 | # 01-42445 | Gasket or O-ring | $13.88 | 69 in Stock | 1 | ||
| 6 | # 01-42441 | Endcover | $48.48 | 0 in Stock | 1 | ||
| 7 | # 0.0279.033 | Endcover screw | $6.03 | 34 in Stock | 1 | ||
| 8 | # 01-35670 | Wearplate | $210.50 | 3 in Stock | 1 | ||
| 9 | # 0.3431.742 | Shaft | $29.35 | 33 in Stock | 1 | ||
| 10 | # 0.2233.252 | Bearing | $25.96 | 6 in Stock | 1 | ||
