Jabsco Pump model 6400-0051 Parts

PARTS LIST for Jabsco Pump model # 6400-0051 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 6400-0051 Product Page )

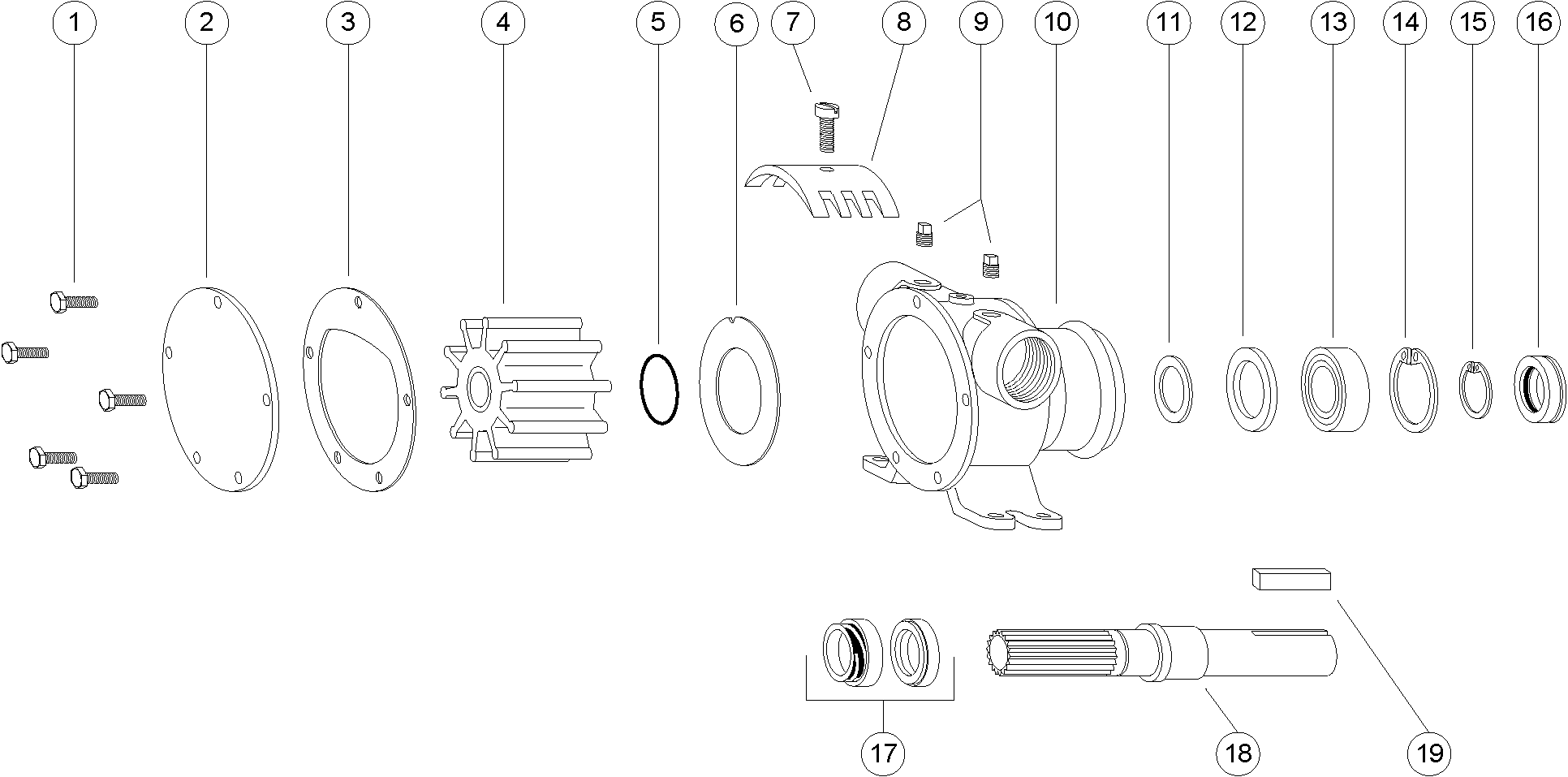

Blowup of 6400-0051


Item 1
(on image above)

Part # 91005-0040

Screw, End Cover

$ 2.61 / each

Qty :

5 are required for rebuild

Can Ship : Same Day (268 in stock)


Item 2
(on image above)

Part # 12062-0000

End Cover

$ 88.31 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (122 in stock)


Item 3
(on image above)

Part # 2553-0000

Gasket, for Half Thickness Cam

$ 5.89 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (906 in stock)


Item 4
(on image above)

Part # 17935-0001-P

Impeller, Neoprene (Standard)

$ 72.61 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (144 in stock)


Item 4
(on image above)

Part # 836-0003-P

Impeller, Nitrile (Optional - for Use with Oil)

$ 60.84 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (38 in stock)


Item 4
(on image above)

Part # 807-1001

Impeller, High Pressure (Optional - for Use Up to 50 Psi)

$ 332.86 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 4
(on image above)

Part # 836-0008-P

Impeller, Natural Rubber (Optional)

$ 125.61 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 5
(on image above)

Part # 92000-0120

O-Ring -10xx Series Pumps Only

$ 4.91 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item 6
(on image above)

Part # 2574-0000

Wearplate

$ 25.52 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (163 in stock)


Item 7
(on image above)

Part # 91005-0050

Screw, Cam (For Half Thickness Cam)

$ 4.91 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (7 in stock)


Item 8
(on image above)

Part # 2551-0000

Cam, Half Thickness

$ 93.23 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 9
(on image above)

Part # 92650-0070

Pipe Plug, 1/4 -10xx Series Pumps Only

$ 7.32 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (5 in stock)


Item 10
(on image above)

Part # 18753-0585

Body

Contact Us for Pricing

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 11
(on image above)

Part # 3181-0000

Slinger

$ 4.57 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2142 in stock)


Item 12
(on image above)

Part # 817-0000

Bearing Seal, Inner

$ 27.47 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (103 in stock)


Item 13
(on image above)

Part # 92600-0040

Ball Bearing

$ 157.99 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (16 in stock)


Item 14
(on image above)

Part # 18712-0000

Retaining Ring, for Bearing to Body

$ 18.65 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (113 in stock)


Item 15
(on image above)

Part # 18711-0000

Retaining Ring, for Bearing to Shaft

$ 21.59 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (62 in stock)


Item 16
(on image above)

Part # 818-0000

Bearing Seal, Outer

$ 37.29 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (48 in stock)


Item 17
(on image above)

Part # 6407-0010

Seal

Seal Assembly

$ 67.71 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (74 in stock)


Item 18
(on image above)

Part # 824-0020

Shaft, Standard Length, 316 Stainless Steel

$ 362.09 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 19
(on image above)

Part # 9214-0001

Key 1/4 X 1/4 X 1

$ 15.71 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item SK
(on image above)

Part # 90062-0001

Major Overhaul Kit

Service Kit, Neoprene (Standard), with Neoprene Impeller, O-Ring and Seal.

$ 228.63 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)
