Jabsco Pump # 6400-0004 Parts Order page( Click Here for the Jabsco Pump # 6400-0004 Product Page ) |
|

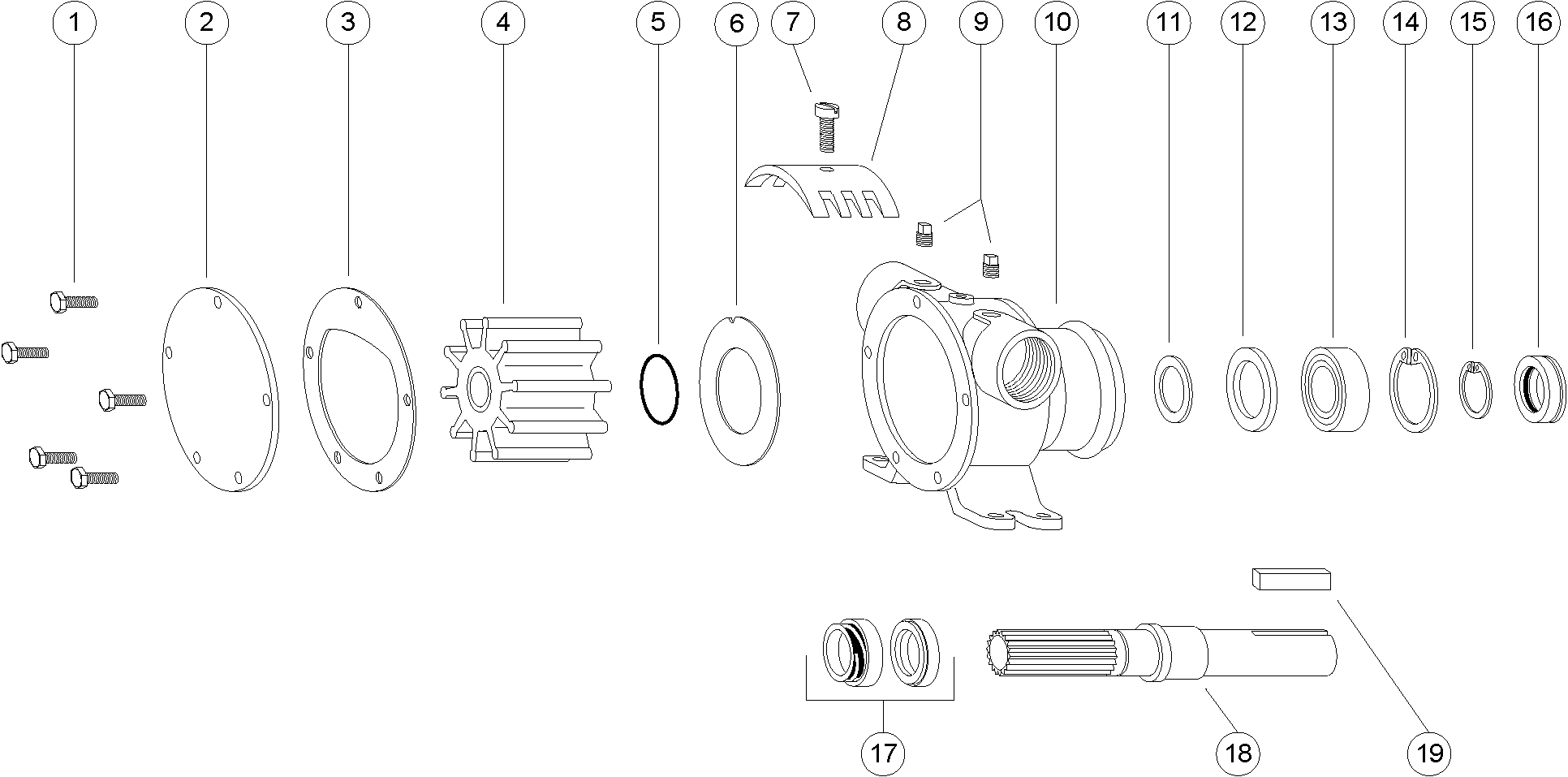

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 6400-0004 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91005-0040 | Screw, End Cover | $2.97 | 289 in Stock | 5 | ||
| 2 | # 12062-0000 | End Cover | $110.34 | 71 in Stock | 1 | ||
| 3 | # 816-0000 | Gasket, for Full Thickness Cam | $10.03 | 84 in Stock | 1 | ||
| 4 | # 17935-0001-P | Impeller, Neoprene (Standard) | $81.69 | 75 in Stock | 1 | ||
| 4 | # 836-0003-P | Impeller, Nitrile (Optional - for Use with Oil) | $69.10 | 14 in Stock | 1 | ||
| 4 | # 807-1001 | Impeller, High Pressure (Optional - for Use Up to 50 Psi) | $414.08 | 2 in Stock | 1 | ||
| 4 | # 836-0008-P | Impeller, Natural Rubber (Optional) | $142.68 | 5 in Stock | 1 | ||
| 6 | # 2574-0000 | Wearplate | $31.88 | 61 in Stock | 1 | ||
| 7 | # 91005-0040 | Screw, Cam (For Full Thickness Cam) | $2.97 | 289 in Stock | 1 | ||
| 8 | # 834-0001 | Cam, Full Thickness | $68.66 | 3 in Stock | 1 | ||
| 9 | # 92650-0070 | Pipe Plug, 1/4 -10xx Series Pumps Only | $7.20 | 7 in Stock | 2 | ||
| 11 | # 3181-0000 | Slinger | $5.20 | 2059 in Stock | 1 | ||
| 12 | # 817-0000 | Bearing Seal, Inner | $34.33 | 111 in Stock | 1 | ||
| 13 | # 92600-0040 | Ball Bearing | $197.41 | 16 in Stock | 1 | ||
| 14 | # 18712-0000 | Retaining Ring, for Bearing to Body | $23.29 | 54 in Stock | 1 | ||
| 15 | # 18711-0000 | Retaining Ring, for Bearing to Shaft | $24.53 | 7 in Stock | 1 | ||
| 16 | # 818-0000 | Bearing Seal, Outer | $46.59 | 14 in Stock | 1 | ||
| 17 | # 6407-0010 | Seal Assembly | $84.61 | 61 in Stock | 1 | ||
| 18 | # 824-0020 | Shaft, Standard Length, 316 Stainless Steel | $411.30 | 1 in Stock | 1 | ||
| 19 | # 9214-0001 | Key 1/4 X 1/4 X 1 | $17.84 | 10 in Stock | 1 | ||
| SK | # 90062-0001 | Service Kit, Neoprene (Standard), with Neoprene Impeller, O-Ring and Seal. | $285.67 | 2 in Stock | 1 | ||
