Jabsco Pump # 6050-0011 Parts Order page( Click Here for the Jabsco Pump # 6050-0011 Product Page ) |
|

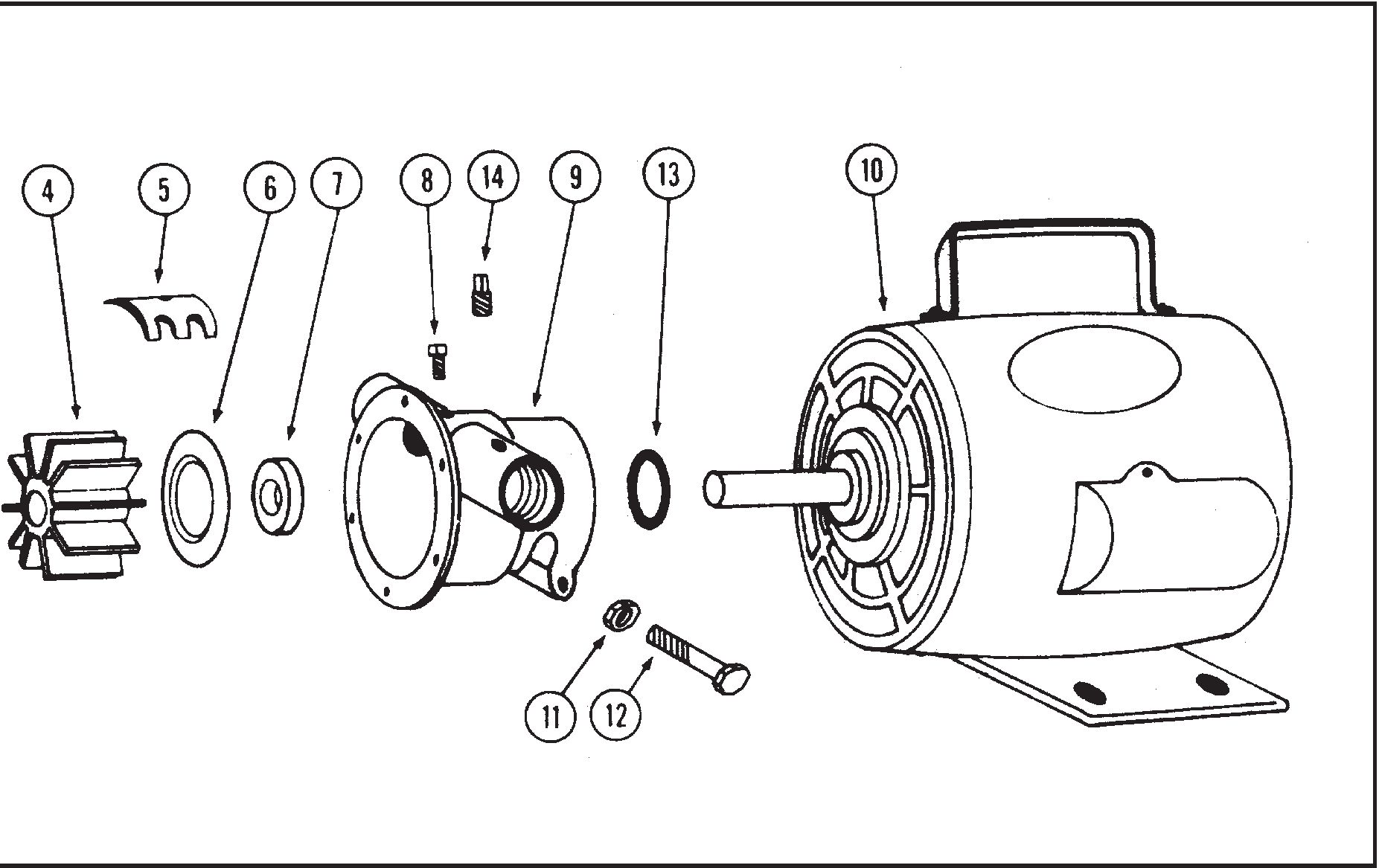

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 6050-0011 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91003-0010 | Screws (End Cover) | $6.12 | 100 in Stock | 6 | ||
| 2 | # 11831-0000 | End Cover | $32.14 | 25 in Stock | 1 | ||
| 3 | # 890-0000 | Gasket | $4.59 | 75 in Stock | 1 | ||
| 4 | # 17956-0001-P | Impeller Neoprene (opt) | $153.84 | 11 in Stock | 1 | ||
| 5 | # 934-0000 | Cam | $41.67 | 36 in Stock | 1 | ||
| 6 | # 4156-0000 | Wearplate | $22.73 | 31 in Stock | 1 | ||
| 7 | # 92700-0080 | Seal | $72.33 | 28 in Stock | 1 | ||
| 8 | # 91004-0090 | Screw (Cam) | $3.78 | 37 in Stock | 1 | ||
| 9 | # 6054-0000 | Body | $356.63 | 4 in Stock | 1 | ||
| 10 | # 18738-0000 | Motor, 3/4 HP, 1725 RPM, 60 Hz, Single Phase, 115/230 Volts, TEFC | $1046.69 | 0 in Stock | 1 | ||
| 11 | # 91105-0030 | Nut (pump to motor bolt) | $2.62 | 0 in Stock | 1 | ||
| 12 | # 91095-0090 | Bolt (pump to motor) | $11.35 | 1 in Stock | 1 | ||
| 13 | # 6398-0000 | O-Ring | $12.63 | 6 in Stock | 1 | ||
| 14 | # 92650-0070 | Plug | $12.72 | 2 in Stock | 1 | ||
| 14 | # 90058-0001 | Service Kit Neoprene | $211.78 | 3 in Stock | 1 | ||
