Jabsco Pump model Parts

PARTS LIST for Jabsco Pump model # Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 5320-0011 Product Page )

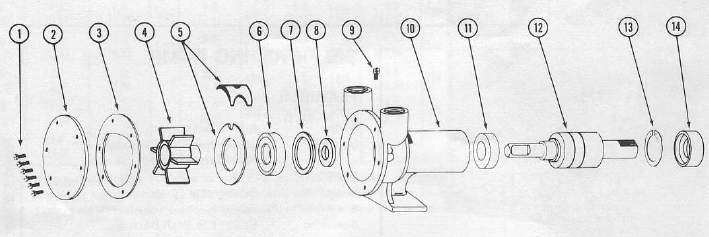

Blowup of 5320-0011


Item 1
(on image above)

Part # 91002-0020

Screw (end cover)

$ 4.03 / each

Qty :

6 are required for rebuild

Can Ship : Same Day (2 in stock)


Item 2
(on image above)

Part # 11830-0000

End Cover

$ 15.58 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (56 in stock)


Item 3
(on image above)

Part # 2995-0000

Gasket

$ 3.47 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (27 in stock)


Item 4
(on image above)

Part # 5616-0001-P

Impeller

Impeller

$ 89.97 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (18 in stock)


Item 5
(on image above)

Part # 7895-0001

Cam Wearplate

$ 51.91 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (7 in stock)


Item 6
(on image above)

Part # 92700-0420

Seal

Seal (shaft)

$ 25.10 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (27 in stock)


Item 7
(on image above)

Part # 92000-0540

O-Ring

$ 3.90 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 8
(on image above)

Part # 879-0000

Slinger

$ 15.56 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (7 in stock)


Item 9
(on image above)

Part # 91002-0090

Screw (cam)

$ 4.32 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (21 in stock)


Item 11
(on image above)

Part # 93000-0070

Bearing Seal (inner)

$ 10.65 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (7 in stock)


Item 12
(on image above)

Part # 6020-0000

Shaft and Bearing assembly

$ 592.74 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 13
(on image above)

Part # 91701-0040

Retaining Ring (bearing to body)

$ 15.03 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 14
(on image above)

Part # 92700-0310

Bearing Seal (outer)

$ 44.12 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (10 in stock)


Item ns
(on image above)

Part # 9215-0010

Key

$ 6.92 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item SK
(on image above)

Part # 90044-0001

Service Kit c/w Impeller, Gasket, Seal (shaft), O-Ring

$ 104.70 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)
