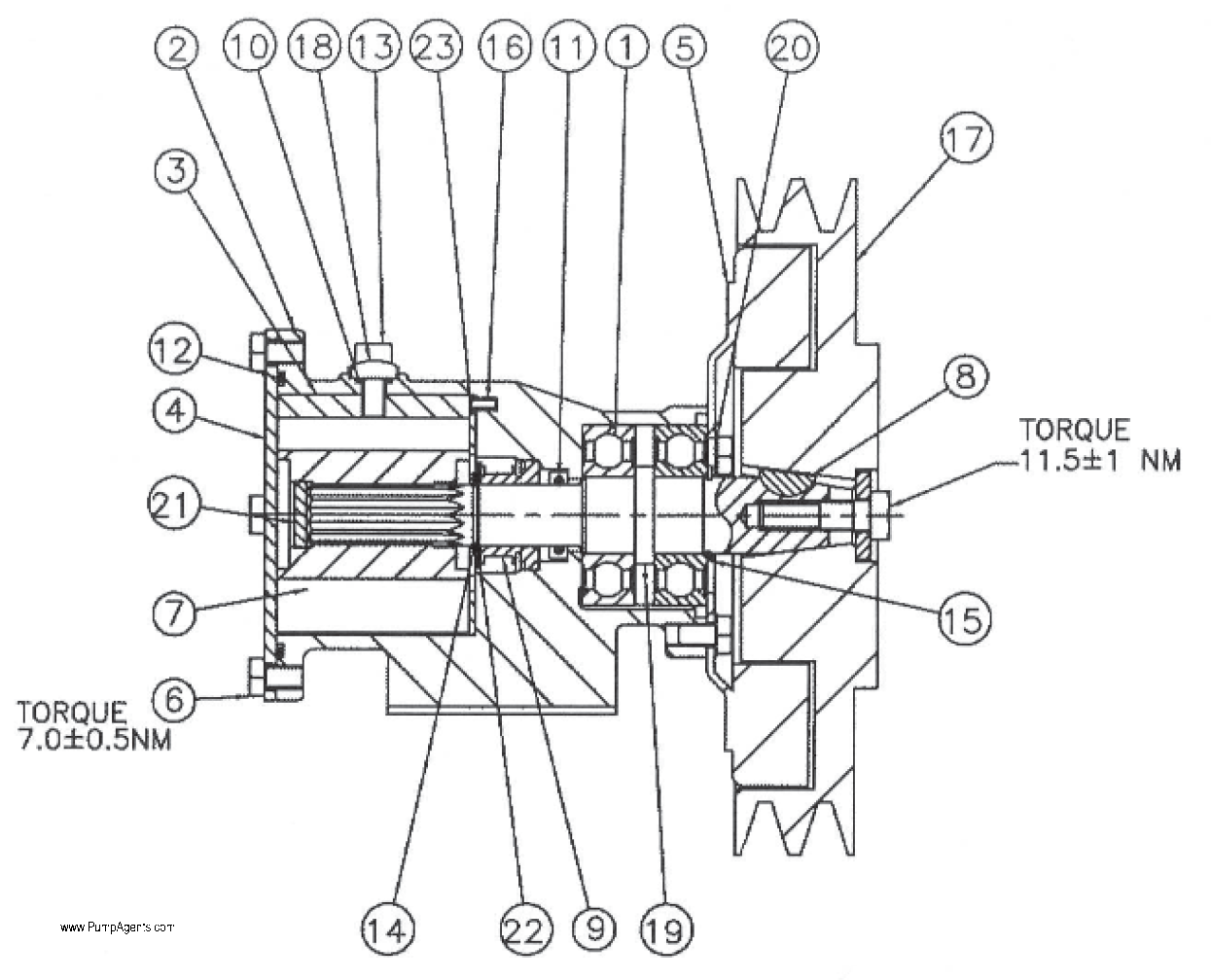

Jabsco Pump model 50580-9103 Parts( Click Here for the Jabsco Pump 50580-9103 Product Page ) |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 50580-9103 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # SP2601-0468 | Bearing. Ball | $13.23 | 2 in Stock | 2 are Req'd | ||
| 3 | # 53082-0000 | Cam | $41.97 | 2 in Stock | 1 is Req'd | ||
| 4 | # 50355-0000 | Endcover | $53.54 | 12 in Stock | 1 is Req'd | ||
| 6 | # X3001-176F | Hex Head Screw | $6.62 | 0 in Stock | 7 are Req'd | ||
| 7 | # 920-0003-P | Impeller and Gasket Kit, Nitrile | $44.58 | 68 in Stock | 1 is Req'd | ||
| 10 | # X4020-106A | O-Ring | $7.26 | 2 in Stock | 1 is Req'd | ||
| 11 | # X4020-215A | O-Ring | $5.31 | 1 in Stock | 1 is Req'd | ||
| 12 | # X4020-269A | O-Ring | $20.49 | 0 in Stock | 1 is Req'd | ||
| 16 | # SP310010 | Roll Pin | $7.28 | 0 in Stock | 1 is Req'd | ||
| 16 | # X3003-176F | Screw | $1.63 | 11 in Stock | 1 is Req'd | ||
| 22 | # 29706-0000 | Support Washer | $3.18 | 3 in Stock | 1 is Req'd | ||
| N+S | # 4732-0000 | Vacuum Switch | $173.88 | 2 in Stock | 1 is Req'd | ||
