Jabsco Pump model 4720-0001 Parts

PARTS LIST for Jabsco Pump model # 4720-0001 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 4720-0001 Product Page )

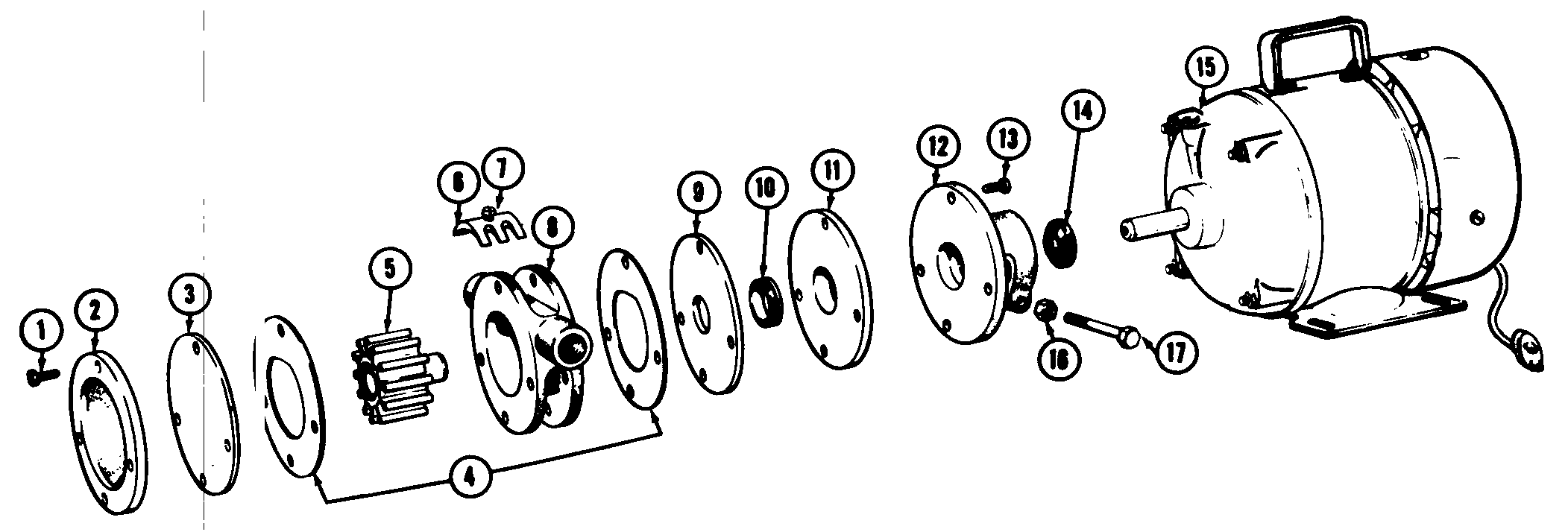

Blowup of 4720-0001


Item 1
(on image above)

Part # 91106-0070

Screw (End Cover)

Contact Us for Pricing

4 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 2
(on image above)

Part # 4919-0000

End Cover

Contact Us for Pricing

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 3
(on image above)

Part # 4918-0000

Wearplate (Body to End Cover)

$ 48.98 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 4
(on image above)

Part # 2876-0000

Gasket

$ 16.11 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (4 in stock)


Item 5
(on image above)

Part # 6174-0001

Impeller

Impeller, Neoprene

$ 206.06 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 6
(on image above)

Part # 2880-0000

Cam

$ 139.42 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 7
(on image above)

Part # 91023-0010

Screw (Cam)

Contact Us for Pricing

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 8
(on image above)

Part # 2873-0000

Body

Contact Us for Pricing

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 9
(on image above)

Part # 4357-0000

Wearplate (Body to Adaptor)

$ 37.59 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 10
(on image above)

Part # 92700-0520

Seal

Seal

$ 98.02 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 11
(on image above)

Part # 4354-0000

Liner

$ 102.05 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 12
(on image above)

Part # 4355-0000

Adaptor

$ 220.05 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 13
(on image above)

Part # 91106-0070

Screw (Adaptor)

Contact Us for Pricing

4 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 14
(on image above)

Part # 6398-0000

Slinger

$ 9.80 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (7 in stock)


Item 15
(on image above)

Part # 18735-0000

Motor, 1/3 Hp, 115/230 Volts Ac, 60 Hz, Single Phase, Tefc, 1725 Rpm, Continuous Duty, 56-Frame, with Handle and 6 Foot Cord with Three Prong Plug

$ 1277.20 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 16
(on image above)

Part # 91105-0030

Nut (Adaptor)

$ 2.66 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 17
(on image above)

Part # 91095-0090

Bolt (Adaptor)

$ 11.54 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item PMP
(on image above)

Part # 4730-0001

Replacement Pump Head Only, with Neoprene Impeller

$ 1475.85 / each

Qty :

- is required for rebuild

Can Ship : Same Day (6 in stock)


Item SK
(on image above)

Part # 90045-0001

Major Overhaul Kit

Service Kit, Neoprene, with Neoprene Impeller, Seal and O-Ring

$ 420.29 / each

Qty :

- is required for rebuild

Can Ship : Same Day (2 in stock)
