Jabsco Pump model 37010-4192 Parts

PARTS LIST for Jabsco Pump model # 37010-4192 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 37010-4192 Product Page )

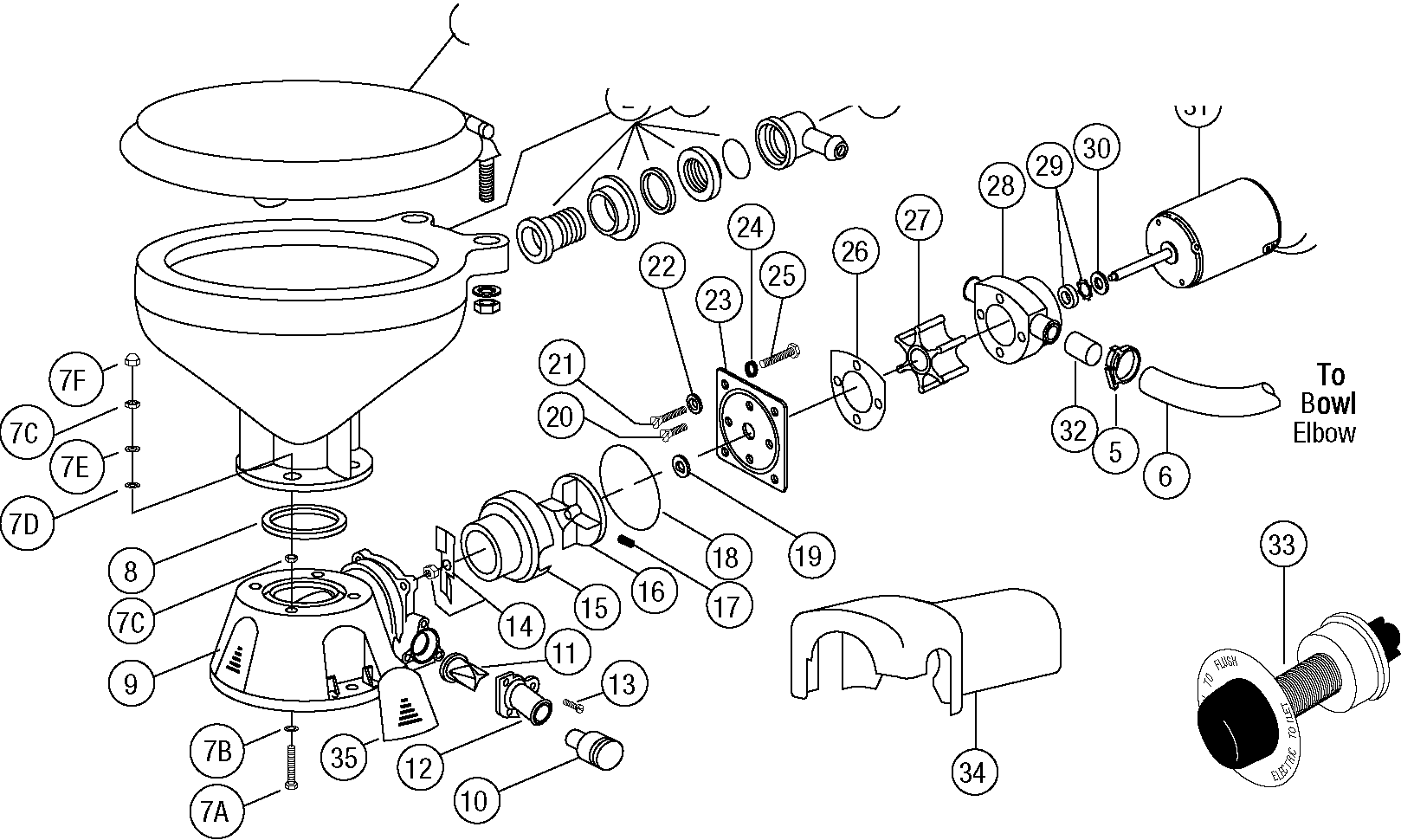

Blowup of 37010-4192

Item 1
(on image above)

Part # 58104-2000

Seat & Cover , Soft Close (Built In 2018 and After)

$ 149.04 / each

Item 2
(on image above)

Part # 29126-1000

Bowl, Regular

Contact Us for Pricing

Item 3
(on image above)

Part # 58105-2000

Hinge Set, Soft Close (Built In 2018 and After)

$ 43.50 / each

Item 34
(on image above)

Part # 29048-0000

Bowl Spud and Intake, Elbow and O-Ring

$ 76.30 / each

Item 5
(on image above)

Part # 18753-0044

Clamp

$ 27.98 / each

Item 6
(on image above)

Part # 29035-0001

Hose

Contact Us for Pricing

Item 7
(on image above)

Part # 18753-0637

Bowl Installation Hardware

$ 25.51 / each

Item 8
(on image above)

Part # 44101-1000

O-Ring Bowl/Seal

$ 10.78 / each

Item 9
(on image above)

Part # 37004-1000

Base Assembly

$ 182.76 / each

Item 10
(on image above)

Part # 98023-0080

1-1/2 Inch Adaptor, Discharge Port

$ 18.98 / each

Item 12
(on image above)

Part # 44107-1300

1 Inch Discharge Port

Contact Us for Pricing

Item 14
(on image above)

Part # 37056-1000

Chopper Plate with Lock Nut

$ 19.26 / each

Item 15
(on image above)

Part # 37014-0000

Macerator Housing

$ 37.16 / each

Item 16
(on image above)

Part # 37006-0000

Centrifugal Impeller

$ 33.98 / each

Item 17
(on image above)

Part # 18753-0492

Set Screw

Contact Us for Pricing

Item 18
(on image above)

Part # 43990-0066

O-Ring

$ 4.85 / each

Item 19
(on image above)

Part # 37036-1000

Sealing Sleeve

$ 5.34 / each

Item 20
(on image above)

Part # 91009-0096

Screw

$ 6.75 / each

Item 21
(on image above)

Part # 91010-0130

Screw

$ 12.97 / each

Item 22
(on image above)

Part # 35445-0000

Washer, Fiber

$ 3.79 / each

Item 23
(on image above)

Part # 37018-0000

Wearplate Kit

$ 48.19 / each

Item 25
(on image above)

Part # 91027-0011

Screw

$ 6.58 / each

Item 26
(on image above)

Part # 12558-0000

Gasket

$ 3.70 / each

Item 27
(on image above)

Part # 6303-0003-P

Flexible Impeller

$ 28.46 / each

Item 28
(on image above)

Part # 12554-0000

Body

$ 104.75 / each

Item 29
(on image above)

Part # 1040-0000

Seal and Retainer

$ 11.77 / each

Item 30
(on image above)

Part # 6342-0000

Slinger

$ 1.63 / each

Item 31
(on image above)

Part # 37064-0000

Motor, 12 Volt DC

$ 248.99 / each

Item 32
(on image above)

Part # 93003-0240

Adaptor

$ 27.14 / each

Item 33
(on image above)

Part # 37020-0000

Switch and Plate

$ 83.90 / each

Item 34
(on image above)

Part # 43990-0051

Motor Cover

$ 37.28 / each

Item 35
(on image above)

Part # 37003-1000

Screw Cover (3 Each)

$ 14.36 / each

Item SK
(on image above)

Part # 37040-0000

Service Kit

$ 85.87 / each

Item PUMP
(on image above)

Part # 37041-0010

None

Macerator Pump and Motor Assembly, 12 Volt Dc

$ 345.48 / each
