Jabsco Pump model 3270-0001 Parts

PARTS LIST for Jabsco Pump model # 3270-0001 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 3270-0001 Product Page )

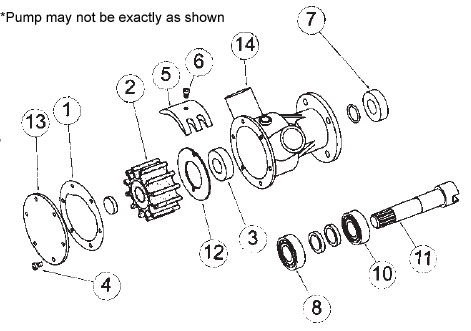

3270-0001 parts

Item 1
(on image above)

Part # 3298-0000

Gasket/ O-Ring

$ 8.83 / each

Item 2
(on image above)

Part # 1210-0001-P

Impeller

Impeller

$ 38.26 / each

Item 3
(on image above)

Part # 92700-0060

Seal

Water Seal

$ 26.50 / each

Item 5
(on image above)

Part # 7884-0000

Cam

$ 48.09 / each

Item 6
(on image above)

Part # 91003-0010

Cam Screw

$ 15.71 / each

Item 8
(on image above)

Part # 92600-0070

Pump End Bearing

$ 119.72 / each

Item 11
(on image above)

Part # 3277-0000

Shaft

$ 171.12 / each

Item 13
(on image above)

Part # 11830-0000

Endcover

$ 17.67 / each

Not Shown
(Not Shown on image above)

Part # 90033-0001

Minor Service Kit

$ 70.65 / each
