Jabsco Pump model Parts
PARTS LIST for Jabsco Pump model # Pump:

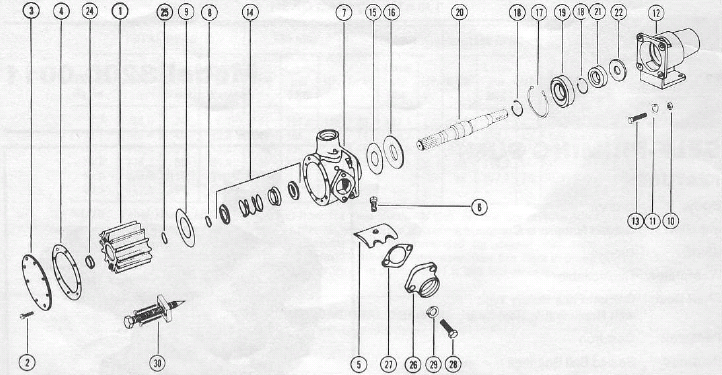

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
Item 1
(on image above)
Impeller
$ 494.94 / each
Item 8
(on image above)
Retaining Ring (seal)
$ 31.10 / each
Item 14
(on image above)
Seal
Seal assembly
$ 312.17 / each
Item 17
(on image above)
Retaining Ring (inner bearing to pedestal)
$ 105.68 / each
Item 18
(on image above)
Retaining Ring (bearing to shaft)
$ 20.06 / each
Item 19
(on image above)
Ball Bearing (inner)
$ 145.82 / each
Item 21
(on image above)
Ball Bearing (outer)
$ 127.85 / each
Item 23
(on image above)
Key
$ 28.63 / each
Item SK
(on image above)
Minor Service Kit
Service Kit c/w Impeller, Gasket, Retaining Ring (seal), Seal assembly, O-ring
$ 762.72 / each
