Jabsco Pump model 30520-2003 Parts

PARTS LIST for Jabsco Pump model # 30520-2003 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30520-2003 Product Page )

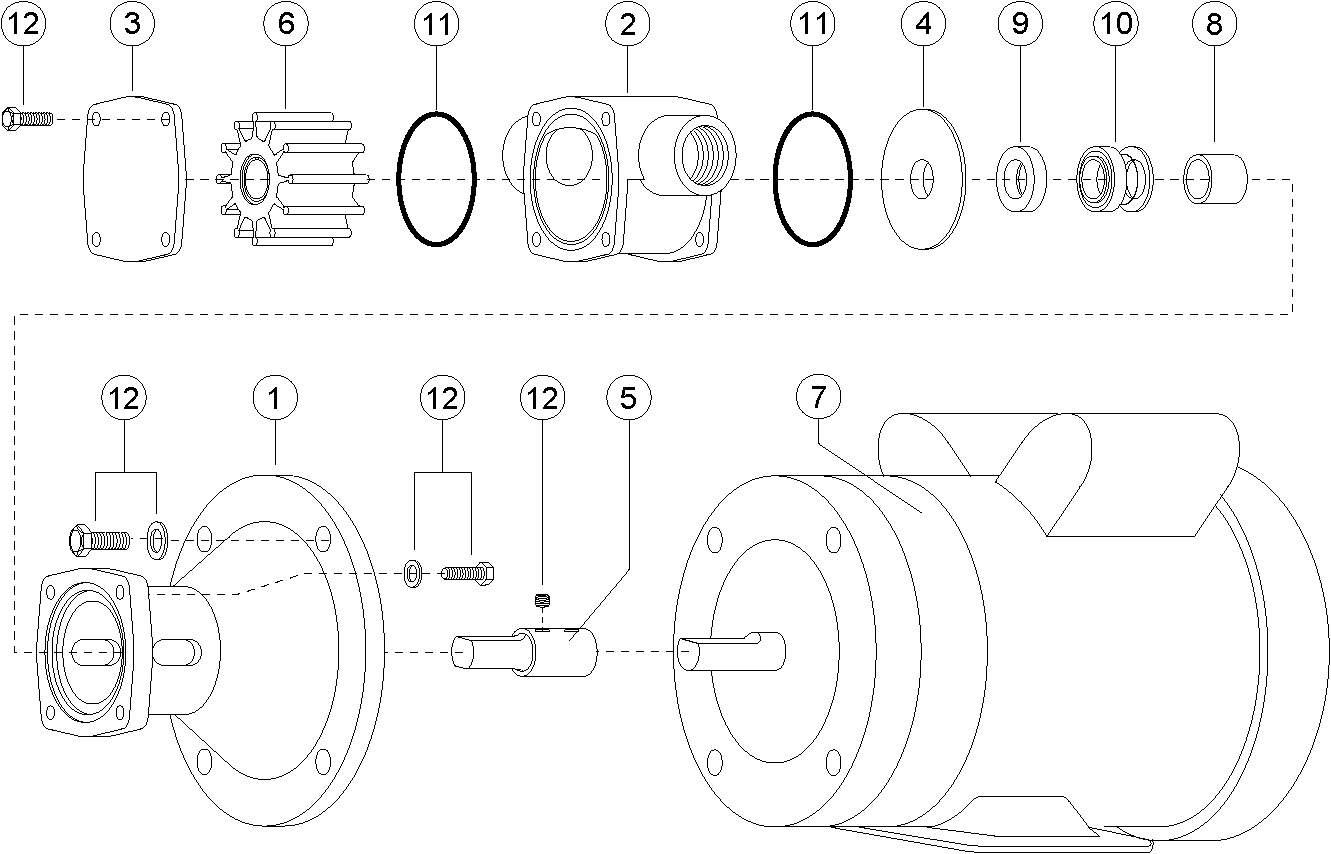

Blowup of 30520-2003


Item 1
(on image above)

Part # 18753-0216

Adaptor

$ 657.34 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item 2
(on image above)

Part # 18753-0189

Body

$ 629.99 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (9 in stock)


Item 3
(on image above)

Part # 18753-0195

End Cover

$ 121.48 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (10 in stock)


Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 229.80 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (12 in stock)


Item 5
(on image above)

Part # 18753-0211

Shaft

$ 800.54 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item 6
(on image above)

Part # 14282-0003B

Impeller, Standard Pressure - Nitrile

$ 114.15 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (60 in stock)


Item 8
(on image above)

Part # 18753-0227

Spacer

$ 165.65 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (12 in stock)


Item 9
(on image above)

Part # 18753-0235

Seal Seat, Nitrile

$ 42.97 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (36 in stock)


Item 10
(on image above)

Part # 18753-0245

Mechanical Seal, Nitrile/Carbon/Ceramic

$ 110.11 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (26 in stock)


Item 11
(on image above)

Part # 18753-0263

O-Ring, Nitrile

$ 9.41 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (173 in stock)


Item 12
(on image above)

Part # 18753-0282

Screw Kit, consists of Screws, Hex Hd 3/8 -16 x 1 (4) Screws, Hex Hd M6 x 16mm (4) Screws, Hex Hd M6 x 10mm (4) Set Screw, Cup Pt. 1/4-20 x 3/8 (2) Set Screw, Dog Pt. 1/4-20 x 3/8 (2) Washers, Flat 3/8 (4) Washers, Flat M6 (4)

$ 110.11 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (8 in stock)
