Jabsco Pump model 30520-0114 Parts

PARTS LIST for Jabsco Pump model # 30520-0114 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30520-0114 Product Page )

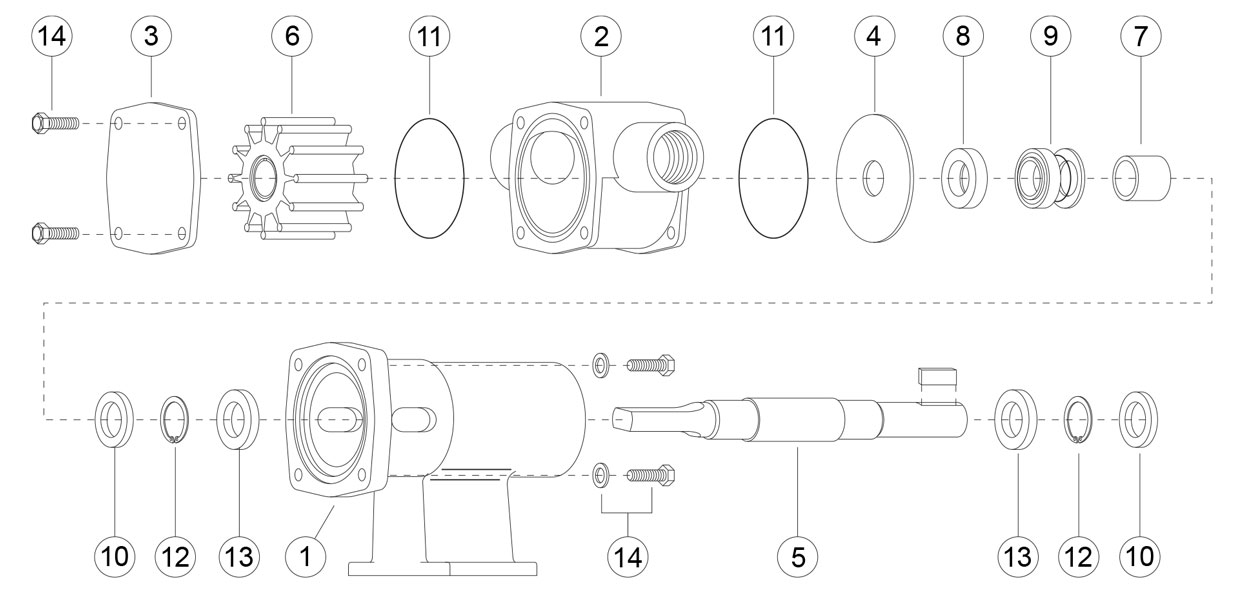

Blowup of 30520-0114


Item 1
(on image above)

Part # 18753-0184

Bearing Housing

$ 457.55 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 2
(on image above)

Part # 18753-0189

Body

$ 629.99 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (9 in stock)


Item 3
(on image above)

Part # 18753-0195

End Cover

$ 121.48 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (10 in stock)


Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 229.80 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (12 in stock)


Item 5
(on image above)

Part # 18753-0205

Shaft

$ 447.66 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 6
(on image above)

Part # 8840-0004

Impeller

Impeller, High Pressure - Viton

$ 678.75 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 7
(on image above)

Part # 18753-0225

Spacer,

$ 265.56 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 8
(on image above)

Part # 18753-0236

Seal Seat, Ceramic Viton

$ 102.05 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (9 in stock)


Item 9
(on image above)

Part # 18753-0248

Mechanical Seal, Tungsten Carbide - Viton

$ 578.67 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 10
(on image above)

Part # 18753-0258

Bearing Seal

$ 28.21 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (29 in stock)


Item 11
(on image above)

Part # 18753-0264

O-Ring, Viton

$ 22.83 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 12
(on image above)

Part # 18753-0270

Retaining Ring

$ 12.09 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (24 in stock)


Item 13
(on image above)

Part # 18753-0274

Bearing

$ 48.33 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (12 in stock)


Item 14
(on image above)

Part # 18753-0281

Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4)

$ 32.22 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)
