Jabsco Pump model 30520-0104 Parts

PARTS LIST for Jabsco Pump model # 30520-0104 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30520-0104 Product Page )

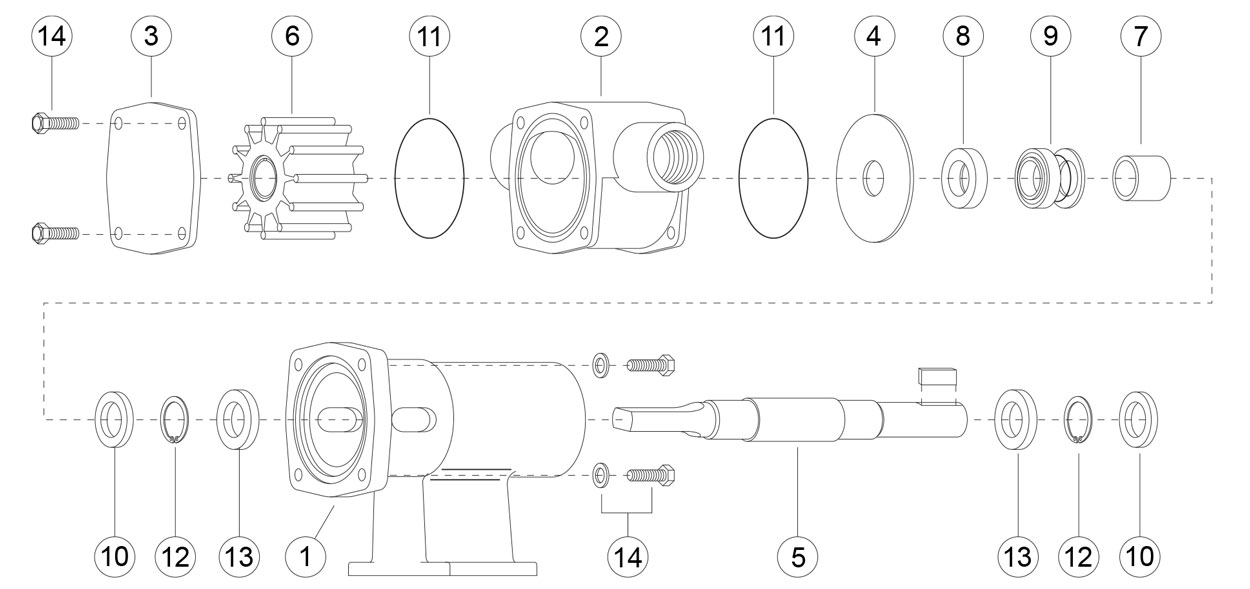

Blowup of 30520-0104


Item 1
(on image above)

Part # 18753-0184

Bearing Housing

$ 468.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 2
(on image above)

Part # 18753-0189

Body

$ 644.73 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (19 in stock)


Item 3
(on image above)

Part # 18753-0195

End Cover

$ 124.34 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 4
(on image above)

Part # 18753-0200

Wearplate

$ 235.17 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (25 in stock)


Item 5
(on image above)

Part # 18753-0205

Shaft

$ 458.15 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 6
(on image above)

Part # 14282-0004B

Impeller, Standard Pressure - Viton

$ 153.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (7 in stock)


Item 7
(on image above)

Part # 18753-0225

Spacer,

$ 271.77 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 8
(on image above)

Part # 18753-0236

Seal Seat, Ceramic Viton

$ 107.72 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (4 in stock)


Item 9
(on image above)

Part # 18753-0248

Mechanical Seal, Tungsten Carbide - Viton

$ 633.67 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 10
(on image above)

Part # 18753-0258

Bearing Seal

$ 28.81 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (21 in stock)


Item 11
(on image above)

Part # 18753-0264

O-Ring, Viton

$ 11.66 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 12
(on image above)

Part # 18753-0270

Retaining Ring

$ 12.35 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (30 in stock)


Item 13
(on image above)

Part # 18753-0274

Bearing

$ 46.30 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (11 in stock)


Item 14
(on image above)

Part # 18753-0281

Screw Kit, consists of Screws, Hex Hd. M6 x 20mm (4) Screws, Pan Hd. M6 x 20mm (4) Washers, Flat M6 (4)

$ 32.91 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (9 in stock)
