Jabsco Pump model 30510-1XXX Parts

PARTS LIST for Jabsco Pump model # 30510-1XXX Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

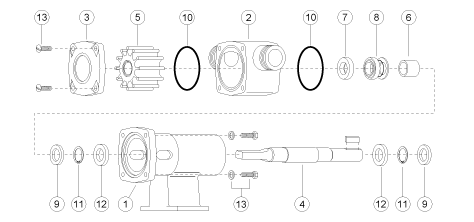

Blowup of 30510-1XXX


Item 1
(on image above)

Part # 18753-0183

Bearing Housing

$ 456.04 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 2
(on image above)

Part # 18753-0188

Body

$ 374.83 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (25 in stock)


Item 3
(on image above)

Part # 18753-0194

End Cover

$ 155.21 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (36 in stock)


Item 4
(on image above)

Part # 18753-0204

Shaft

$ 721.08 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 5
(on image above)

Part # 14281-0001B

Impeller: Standard Pressure Neoprene

$ 91.31 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (35 in stock)


Not Shown
(Not Shown on image above)

Part # 14281-0003B

Impeller: Standard Pressure Nitrile

$ 91.31 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (35 in stock)


Not Shown
(Not Shown on image above)

Part # 14281-0004B

Impeller: Standard Pressure Viton

$ 123.53 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (16 in stock)


Not Shown
(Not Shown on image above)

Part # 7614-0002B

Impeller: Standard Pressure EPDM

$ 122.19 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (16 in stock)


Not Shown
(Not Shown on image above)

Part # 8980-0005B

Impeller: High Pressure Neoprene

$ 110.11 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (56 in stock)


Not Shown
(Not Shown on image above)

Part # 8980-0004B

Impeller: High Pressure Viton

$ 201.43 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Not Shown
(Not Shown on image above)

Part # 8980-0002B

Impeller: High Pressure EPDM

$ 205.43 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (9 in stock)


Item 6
(on image above)

Part # 18753-0221

Spacer:

$ 205.66 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)


Item 7
(on image above)

Part # 18753-0233

Seal Seat: Nitrile

$ 42.97 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (44 in stock)


Seal Kit
(Not Shown on image above)

Part # 18753-0234

Seal Seat: Ceramic Viton

$ 102.05 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (11 in stock)


Item 8
(on image above)

Part # 18753-0241

Mechanical Seal, Carbon - Nitrile

$ 88.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (43 in stock)


Seal Kit
(Not Shown on image above)

Part # 18753-0242

Mechanical Seal, Carbon - Viton

$ 296.75 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Seal Kit
(Not Shown on image above)

Part # 18753-0243

Mechanical Seal, Nitrile/Tungsten Carbide

$ 464.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Seal Kit
(Not Shown on image above)

Part # 18753-0244

Mechanical Seal, Tungsten Carbide - Viton

$ 466.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 9
(on image above)

Part # 18753-0257

Bearing Seal

$ 25.51 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (6 in stock)


Item 10
(on image above)

Part # 18753-0261

O-Ring: Nitrile

$ 9.41 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (2579 in stock)


Not Shown
(Not Shown on image above)

Part # 18753-0262

O-Ring: Viton

$ 20.15 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (23 in stock)


Item 11
(on image above)

Part # 18753-0269

Retaining Ring

$ 12.09 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (14 in stock)


Item 12
(on image above)

Part # 18753-0273

Bearing

$ 40.29 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (11 in stock)
