Jabsco Pump # 30510-1111 Parts Order page( Click Here for the Jabsco Pump # 30510-1111 Product Page ) |
|

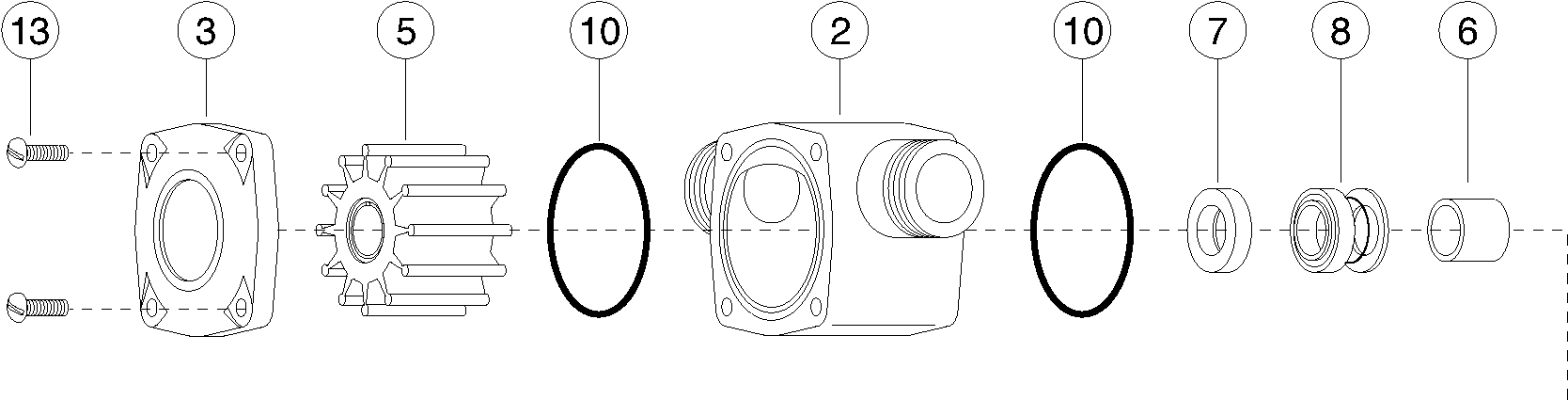

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30510-1111 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0183 | Bearing Housing | $421.11 | 1 in Stock | 1 | ||
| 2 | # 18753-0188 | Body | $368.64 | 24 in Stock | 1 | ||
| 3 | # 18753-0194 | End Cover | $152.64 | 35 in Stock | 1 | ||
| 4 | # 18753-0204 | Shaft | $709.16 | 2 in Stock | 1 | ||
| 5 | # 8980-0005B | Impeller, High Pressure - Neoprene | $119.12 | 19 in Stock | 1 | ||
| 6 | # 18753-0221 | Spacer, | $222.48 | 5 in Stock | 1 | ||
| 7 | # 18753-0233 | Seal Seat, Nitrile | $46.48 | 32 in Stock | 1 | ||
| 8 | # 18753-0243 | Mechanical Seal, Nitrile/Tungsten Carbide | $502.62 | 2 in Stock | 1 | ||
| 9 | # 18753-0257 | Bearing Seal | $30.34 | 33 in Stock | 2 | ||
| 10 | # 18753-0261 | O-Ring, Nitrile | $10.17 | 2426 in Stock | 2 | ||
| 11 | # 18753-0269 | Retaining Ring | $11.89 | 15 in Stock | 2 | ||
| 12 | # 18753-0273 | Bearing | $48.65 | 5 in Stock | 2 | ||
| 13 | # 18753-0284 | Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4) | $110.38 | 5 in Stock | 1 | ||
