Jabsco Pump model 30510-1102 Parts

PARTS LIST for Jabsco Pump model # 30510-1102 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30510-1102 Product Page )

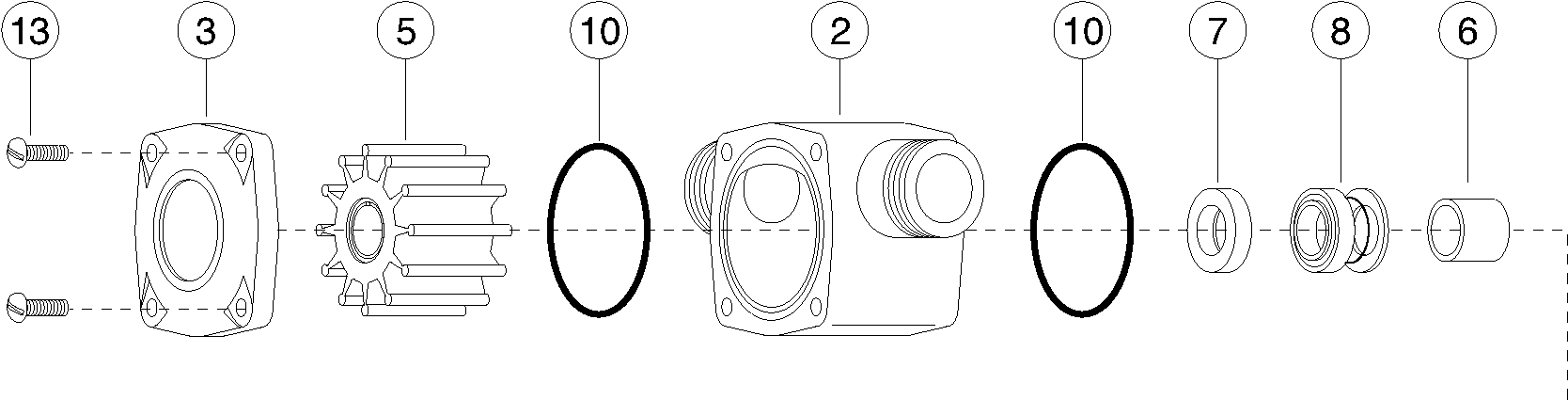

Blowup of 30510-1102


Item 1
(on image above)

Part # 18753-0183

Bearing Housing

$ 456.04 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 2
(on image above)

Part # 18753-0188

Body

$ 374.83 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (25 in stock)


Item 3
(on image above)

Part # 18753-0194

End Cover

$ 155.21 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (36 in stock)


Item 4
(on image above)

Part # 18753-0204

Shaft

$ 721.08 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 5
(on image above)

Part # 7614-0002B

Impeller, Standard Pressure - EPDM

$ 122.19 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (16 in stock)


Item 6
(on image above)

Part # 18753-0221

Spacer,

$ 205.66 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)


Item 7
(on image above)

Part # 18753-0234

Seal Seat, Ceramic Viton

$ 102.05 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (11 in stock)


Item 8
(on image above)

Part # 18753-0244

Seal

Mechanical Seal, Tungsten Carbide - Viton

$ 466.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (1 in stock)


Item 9
(on image above)

Part # 18753-0257

Bearing Seal

$ 25.51 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (6 in stock)


Item 10
(on image above)

Part # 18753-0262

O-Ring, Viton

$ 20.15 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (23 in stock)


Item 11
(on image above)

Part # 18753-0269

Retaining Ring

$ 12.09 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (14 in stock)


Item 12
(on image above)

Part # 18753-0273

Bearing

$ 40.29 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (11 in stock)


Item 13
(on image above)

Part # 18753-0284

Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4)

$ 102.04 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)
