Jabsco Pump # 30510-0002 Parts Order page( Click Here for the Jabsco Pump # 30510-0002 Product Page ) |
|

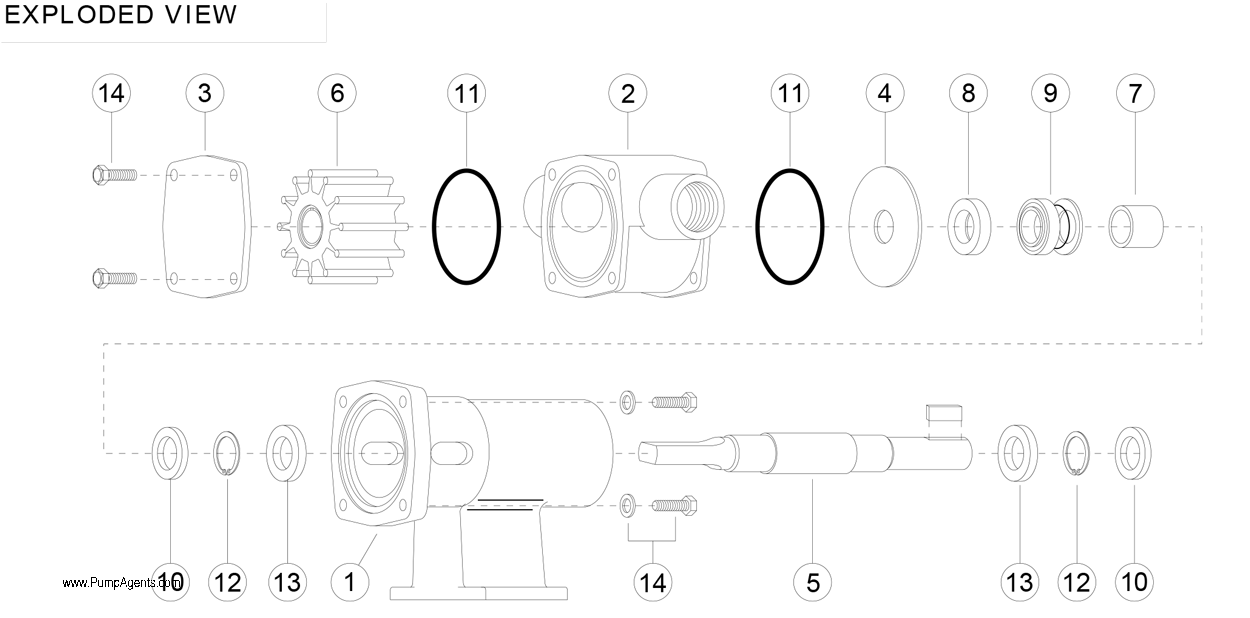

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 30510-0002 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0183 | Bearing Housing | $421.11 | 1 in Stock | 1 | ||
| 2 | # 18753-0187 | Body | $765.28 | 43 in Stock | 1 | ||
| 3 | # 18753-0193 | End Cover | $113.97 | 63 in Stock | 1 | ||
| 4 | # 18753-0199 | Wearplate | $247.02 | 89 in Stock | 1 | ||
| 5 | # 18753-0203 | Shaft | $420.78 | 10 in Stock | 1 | ||
| 6 | # 7614-0002B | Impeller, Standard Pressure - EPDM | $132.20 | 15 in Stock | 1 | ||
| 7 | # 18753-0221 | Spacer, | $222.48 | 5 in Stock | 1 | ||
| 8 | # 18753-0234 | Seal Seat, Ceramic Viton | $110.40 | 0 in Stock | 1 | ||
| 9 | # 18753-0242 | Mechanical Seal, Carbon - Viton | $353.13 | 3 in Stock | 1 | ||
| 10 | # 18753-0257 | Bearing Seal | $30.34 | 33 in Stock | 2 | ||
| 11 | # 18753-0262 | O-Ring, Viton | $21.79 | 20 in Stock | 1 | ||
| 12 | # 18753-0269 | Retaining Ring | $11.89 | 15 in Stock | 2 | ||
| 13 | # 18753-0273 | Bearing | $48.65 | 5 in Stock | 2 | ||
| 14 | # 18753-0277 | Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4) | $37.13 | 2 in Stock | 1 | ||
