Jabsco Pump model 30510-0001 Parts

PARTS LIST for Jabsco Pump model # 30510-0001 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Jabsco Pump 30510-0001 Product Page )

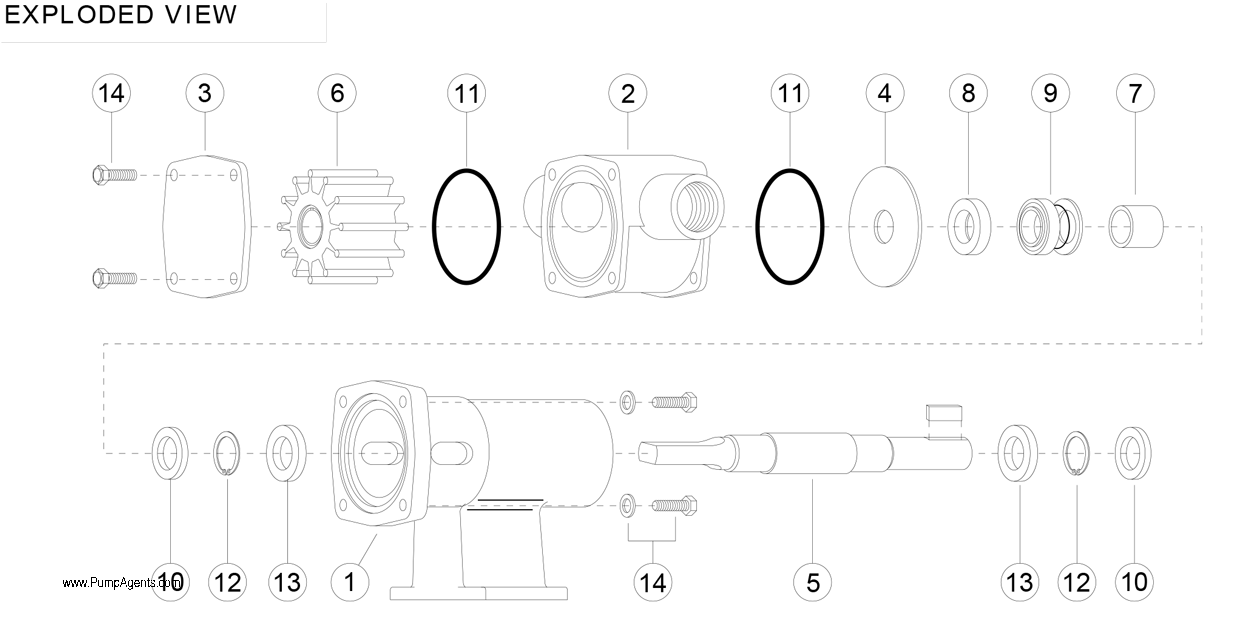

Blowup of 30510-0001


Item 1
(on image above)

Part # 18753-0183

Bearing Housing

$ 456.04 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 2
(on image above)

Part # 18753-0187

Body

$ 707.39 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (13 in stock)


Item 3
(on image above)

Part # 18753-0193

End Cover

$ 105.34 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (12 in stock)


Item 4
(on image above)

Part # 18753-0199

Wearplate

$ 228.34 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (21 in stock)


Item 5
(on image above)

Part # 18753-0203

Shaft

$ 388.95 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (3 in stock)


Item 6
(on image above)

Part # 14281-0001B

Impeller, Standard Pressure - Neoprene

$ 91.31 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (35 in stock)


Item 7
(on image above)

Part # 18753-0221

Spacer,

$ 205.66 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (6 in stock)


Item 8
(on image above)

Part # 18753-0233

Seal Seat, Nitrile

$ 42.97 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (44 in stock)


Item 9
(on image above)

Part # 18753-0241

Seal

Mechanical Seal, Carbon - Nitrile

$ 88.62 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (43 in stock)


Item 10
(on image above)

Part # 18753-0257

Bearing Seal

$ 25.51 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (6 in stock)


Item 11
(on image above)

Part # 18753-0261

O-Ring, Nitrile

$ 9.41 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (2579 in stock)


Item 12
(on image above)

Part # 18753-0269

Retaining Ring

$ 12.09 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (14 in stock)


Item 13
(on image above)

Part # 18753-0273

Bearing

$ 40.29 / each

Qty :

2 are required for rebuild

Can Ship : Same Day (11 in stock)


Item 14
(on image above)

Part # 18753-0277

Screw Kit, consists of Screws, Hex Hd. M5 x 16mm (4) Screws, Pan Hd. M5 x 16mm (4) Washers, Flat M5 (4)

$ 22.83 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)
