Jabsco Pump model 3010 Parts

PARTS LIST for Jabsco Pump model # 3010 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 3010 Product Page )

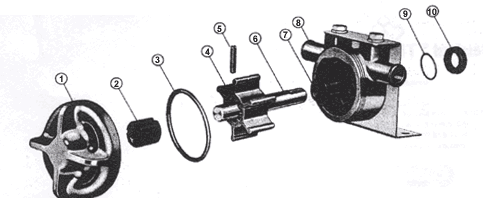

Blowup of 3010

Item 1
(on image above)

Part # 8187-0000

End Cover with Teflon Bearing

$ 36.95 / each

Item 2
(on image above)

Part # 18700-0000

Teflon Bearing ( replaceable )

$ 10.41 / each

Item 3
(on image above)

Part # 92000-0590

* O-Ring ( End Cover ) - Standard

$ 3.90 / each

Not Shown
(Not Shown on image above)

Part # 92000-0790

* O-Ring ( End Cover ) - Viton

$ 21.03 / each

Item 4
(on image above)

Part # 3398-0001

* Impeller : Neoprene

$ 37.59 / each

Not Shown
(Not Shown on image above)

Part # 3398-0004

* Impeller : Viton

$ 110.11 / each

Item 6
(on image above)

Part # 1983-0010

Shaft - Stainless Steel

$ 62.33 / each

Not Shown
(Not Shown on image above)

Part # 1983-0020

Shaft - Hastelloy B

$ 190.04 / each

Item 9
(on image above)

Part # 92000-0120

* O-Ring ( Seal ) - Standard

$ 4.91 / each

Seal Kit
(Not Shown on image above)

Part # 92000-0800

* O-Ring ( Seal ) - Viton

$ 5.61 / each

Item SK
(on image above)

Part # 90026-1011

Service Kit for Model # 3010-1011 Pump

$ 50.71 / each

Item SK
(on image above)

Part # 90026-1014

Service Kit for Model # 3010-1014 Pump

Contact Us for Pricing
