Jabsco Pump model 2570-3000 Parts

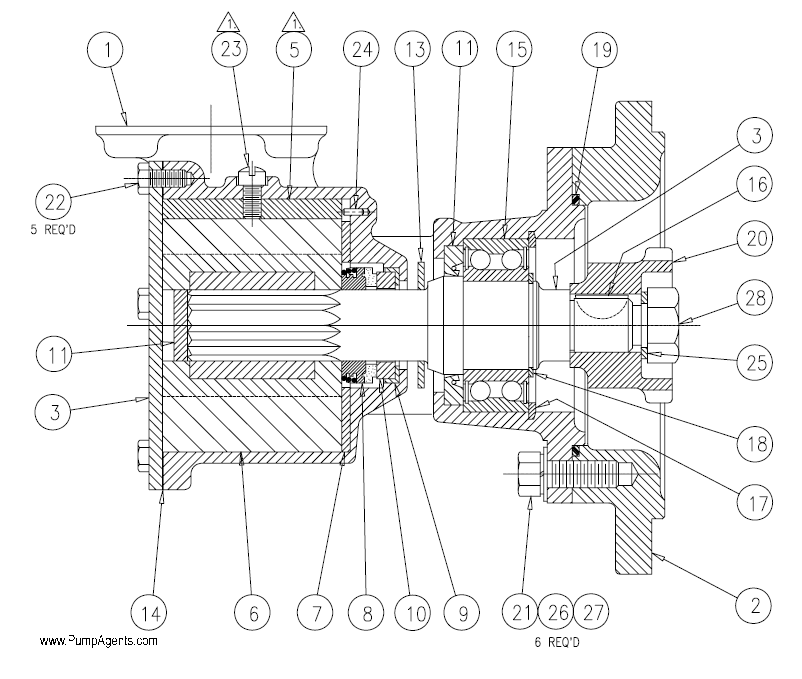

PARTS LIST for Jabsco Pump model # 2570-3000 Pump:
( Click Here for the Jabsco Pump 2570-3000 Product Page )
Not Shown
(Not Shown on image above)
Body - Machining
Contact Us for Pricing
Not Shown
(Not Shown on image above)
Body - Machining
Contact Us for Pricing
Not Shown
(Not Shown on image above)
Adaptor
Contact Us for Pricing
Not Shown
(Not Shown on image above)
Shaft
Contact Us for Pricing
Item 4
(on image above)
End Cover
Contact Us for Pricing
Item 4
(on image above)
Cam
Contact Us for Pricing
Item 4
(on image above)
Cam
Contact Us for Pricing
Item 4
(on image above)
Impeller
Impeller
Contact Us for Pricing
Item 4
(on image above)
Wear Plate
Contact Us for Pricing
Item 8
(on image above)
Seal, Sub-Assy
Contact Us for Pricing
Item 8
(on image above)
Seal, Cup
Contact Us for Pricing
Item 10
(on image above)
Seal, Seat
Contact Us for Pricing
Item 11
(on image above)
Seal, Lip
Contact Us for Pricing
Item 17
(on image above)
Seal, Spline
Contact Us for Pricing
Item 13
(on image above)
Slinger
Contact Us for Pricing
Item 14
(on image above)
Gasket
Contact Us for Pricing
Item 14
(on image above)
Gasket
$ 5.89 / each
Item 15
(on image above)
Bearing, Ball
Contact Us for Pricing
Item 16
(on image above)
Key, Woodruff
Contact Us for Pricing
Item 17
(on image above)
Ring, Retaining
$ 36.84 / each
Item 18
(on image above)
Ring, Retaining
$ 15.51 / each
Item 19
(on image above)
O-Ring
$ 6.87 / each
Item 20
(on image above)
Gear, Drive
Contact Us for Pricing
Item 71
(on image above)
Screw, Hex Hd 3/8-16 X 1.00, Cres
Contact Us for Pricing
Item 7
(on image above)
Screw, Hex Hd, 1/4-20 X 1/2, Cres
$ 23.74 / each
Item 73
(on image above)
Screw, Fill Hd, 1/4-20 X 1/2, Brass
Contact Us for Pricing
Item 73
(on image above)
Screw, Fill Hd, 1/4-20 X 1/2, Brass
$ 4.91 / each
Item 74
(on image above)
Pin, Dowel
Contact Us for Pricing
Item 25
(on image above)
Washer, Lock
Contact Us for Pricing
Item 26
(on image above)
Washer, Lock
Contact Us for Pricing
Item 77
(on image above)
Washer
Contact Us for Pricing
Item 28
(on image above)
Nut, Jam
Contact Us for Pricing
