Jabsco Pump # 18840-1010 Parts Order page( Click Here for the Jabsco Pump # 18840-1010 Product Page ) |
|

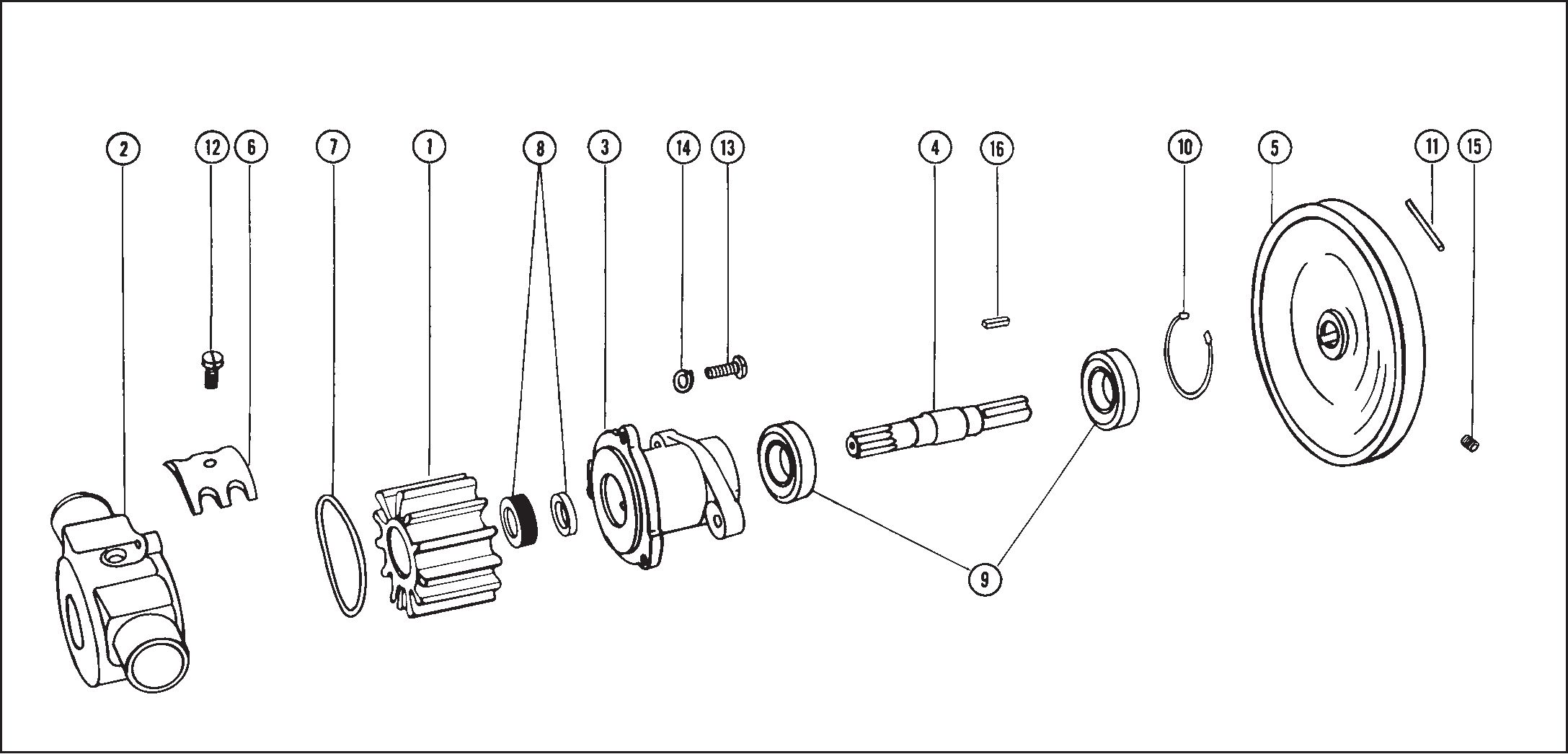

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 18840-1010 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 3085-0001-P | Impeller and Spline Seal, High Pressure Neoprene | $73.64 | 6 in Stock | 1 | ||
| 2 | # 18834-1000 | Impeller Housing | $117.30 | 0 in Stock | 1 | ||
| 3 | # 18943-1000 | Bearing Housing | $382.95 | 0 in Stock | 1 | ||
| 4 | # 18836-1000 | Shaft | $205.86 | 2 in Stock | 1 | ||
| 5 | # 18753-0006 | Pulley | $250.89 | 13 in Stock | 1 | ||
| 6 | # 490-0001 | Cam | $47.87 | 18 in Stock | 1 | ||
| 7 | # 18753-0005 | O-Ring | $21.02 | 3 in Stock | 1 | ||
| 8 | # 96080-0080 | Seal | $65.81 | 122 in Stock | 1 | ||
| 9 | # 92600-0120 | Ball Bearing | $44.38 | 11 in Stock | 2 | ||
| 12 | # 91003-0010 | Cam Screw | $5.66 | 91 in Stock | 1 | ||
| 13 | # 18753-0001 | Screw Kit (3 Ea. with Washers) | $14.13 | 21 in Stock | 1 | ||
