Jabsco Pump # 18690-0010 Parts Order page( Click Here for the Jabsco Pump # 18690-0010 Product Page ) |
|

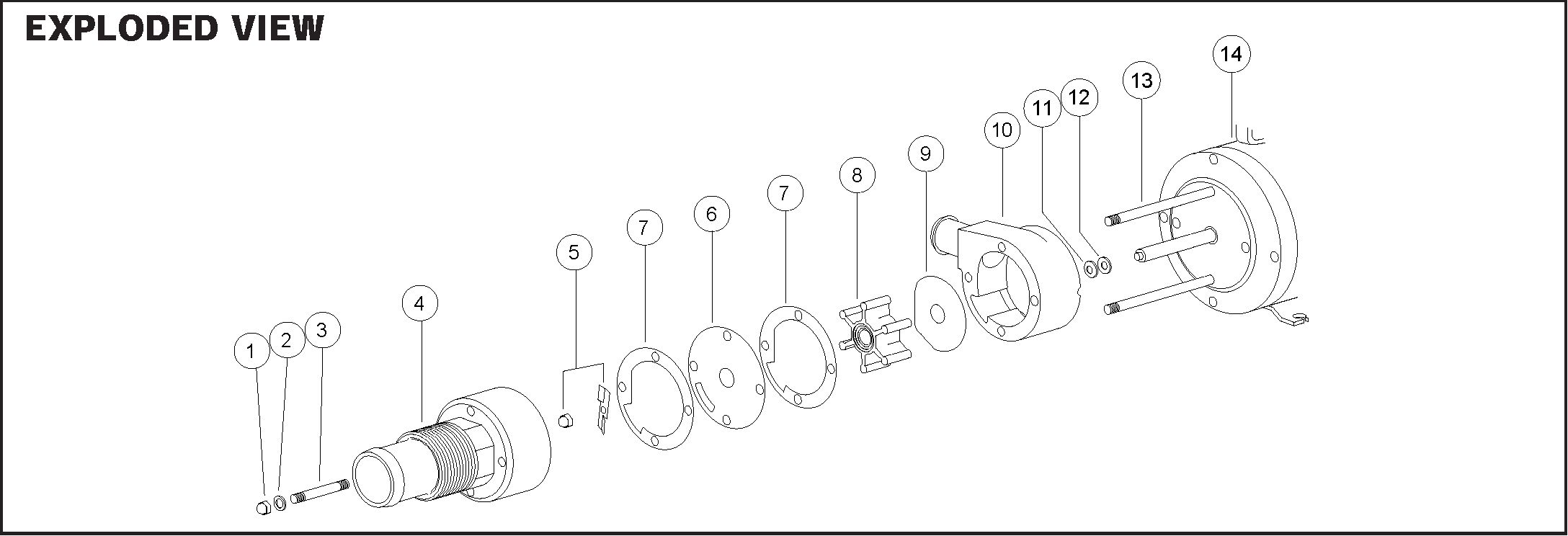

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 18690-0010 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91085-0340 | Acorn Nut | $4.27 | 4 in Stock | 1 | ||
| 4 | # 18594-1001 | Macerator Housing | $121.12 | 2 in Stock | 1 | ||
| 5 | # 37056-1000 | Cutter Plate with Nut | $28.46 | 3 in Stock | 1 | ||
| 6 | # 18597-1000 | Wearplate, Large | $21.36 | 7 in Stock | 1 | ||
| 9 | # 12316-1002 | Wearplate, Small | $24.45 | 6 in Stock | 1 | ||
| 12 | # 6342-0000 | Slinger | $1.86 | 11 in Stock | 1 | ||
| 13 | # 17288-0000 | Stud, Long | $16.72 | 10 in Stock | 1 | ||
| 14 | # 18744-0000 | Motor, 115 Volt AC | $600.31 | 0 in Stock | 1 | ||
| 14 | # 18598-1000 | Service Kit, with Fiber Washer, Stud, Gaskets (2 Each Per Kit), Impeller, Seal, and Back Housing (With Discharge Port) | $135.30 | 5 in Stock | 1 | ||
