Jabsco Pump model 18670 Parts

PARTS LIST for Jabsco Pump model # 18670 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 18670 Product Page )

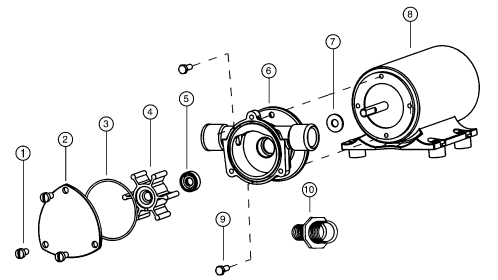

Blowup of 18670

Item 1
(on image above)

Part # 91004-0090

Screw Kit (End Cover)(4 screws/kit)

$ 2.94 / each

Item 2
(on image above)

Part # 18647-0000

End Cover

$ 26.98 / each

Item 3
(on image above)

Part # 18753-0660

O-Ring*

$ 6.87 / each

Item 4
(on image above)

Part # 6303-0003-P

Impeller* - Nitrile ( standard )

$ 28.46 / each

Not Shown
(Not Shown on image above)

Part # 6303-0001-P

Impeller - Neoprene (optional)

$ 28.46 / each

Item 5
(on image above)

Part # 18753-0384

Seal*

$ 36.52 / each

Item 6
(on image above)

Part # 18645-0000

Body

$ 106.99 / each

Item 7
(on image above)

Part # 6342-0000

Slinger

$ 1.63 / each

Item 8
(on image above)

Part # 18753-0050

Motor, 12 Volt DC

$ 403.46 / each

Not Shown
(Not Shown on image above)

Part # 18753-0659

Motor, 12 Volt DC CE

Contact Us for Pricing

Not Shown
(Not Shown on image above)

Part # 18753-0051

Motor, 24 Volt DC

$ 217.12 / each

Item 9
(on image above)

Part # 98019-0020

Screw (Pump to Motor)

$ 3.48 / each

Item 10
(on image above)

Part # 18753-0103

Port Adapter Kit (2 each)

$ 21.89 / each
