Jabsco Pump # 18610-0001 Parts Order page( Click Here for the Jabsco Pump # 18610-0001 Product Page ) |
|

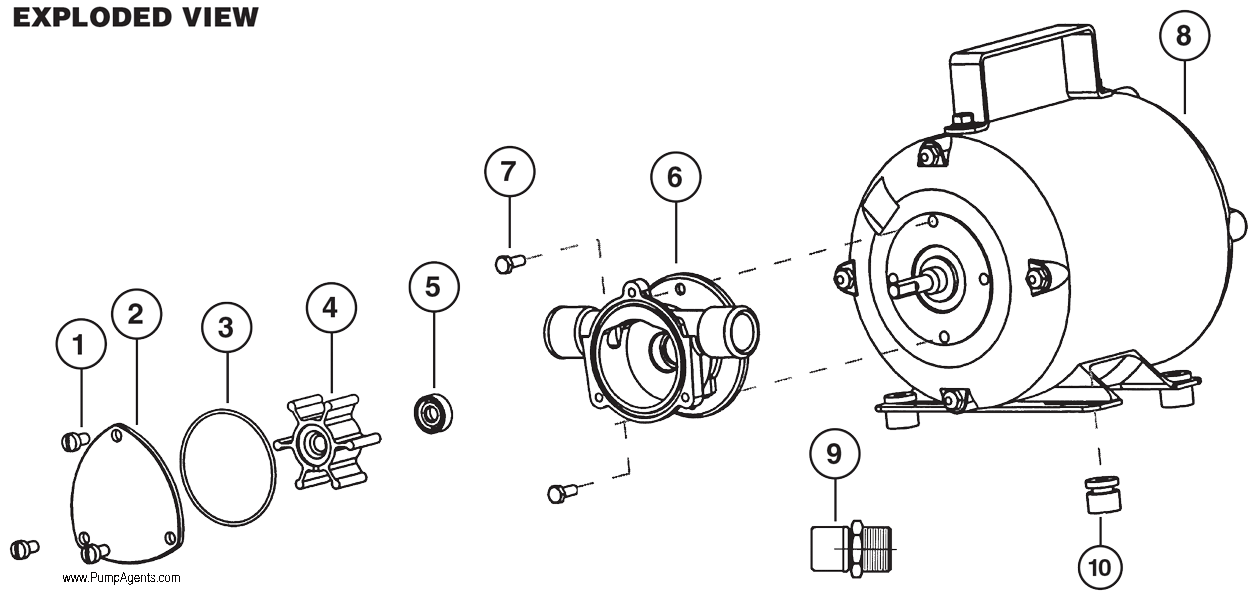

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 18610-0001 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91004-0090 | End Cover Screw Kit (4 Per Kit) | $3.77 | 38 in Stock | 1 | ||
| 2 | # 18647-0000 | End Cover | $32.84 | 2 in Stock | 1 | ||
| 3 | # 18753-0660 | O-Ring | $8.38 | 24 in Stock | 1 | ||
| 4 | # 7273-0001-P | Impeller, Neoprene | $44.20 | 10 in Stock | 1 | ||
| 5 | # 18753-0384 | Lip Seal, Nitrile | $44.43 | 2 in Stock | 1 | ||
| 6 | # 18645-0000 | Body | $136.72 | 1 in Stock | 1 | ||
| 7 | # 98019-0020 | Screw Pump-To-Motor (3 Per Kit) | $3.86 | 8 in Stock | 1 | ||
| 8 | # 18740-0000 | Motor, 1/6hp - 115 Volts Ac, 60 Hz, Odp, 8 Foot Cord with 3 Prong Grounded Plug | $851.43 | 2 in Stock | 1 | ||
| PH | # 9190-1001 | Replacement Pump Head, No Motor, With Neoprene Impeller | $356.36 | 5 in Stock | 1 | ||
