Jabsco Pump model 18590-2092 Parts

PARTS LIST for Jabsco Pump model # 18590-2092 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 18590-2092 Product Page )

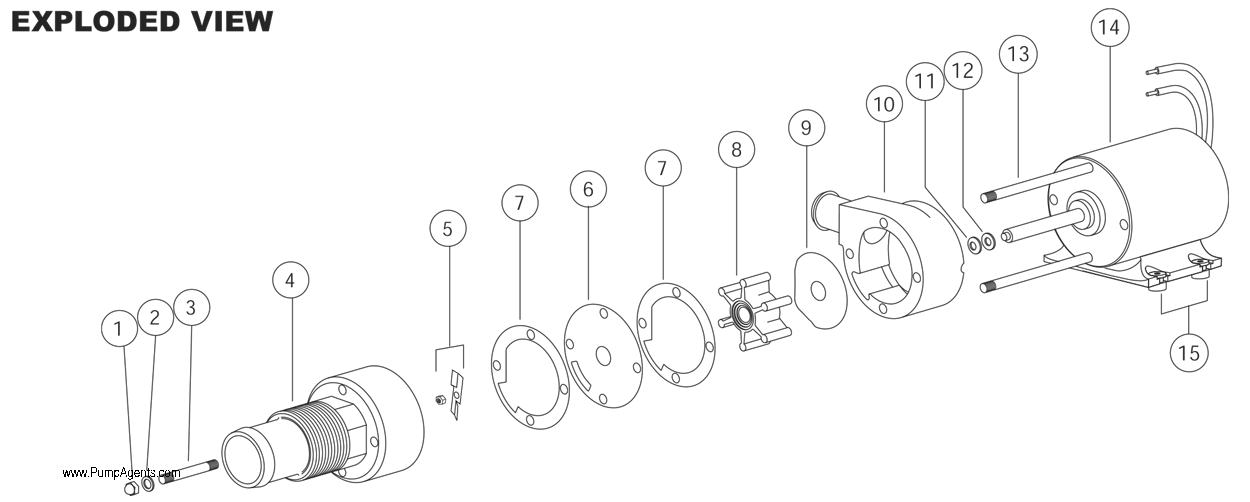

Blowup of 18590-2092

Item 1
(on image above)

Part # 91085-0340

Acorn Nut

$ 10.26 / each

Item 2
(on image above)

Part # 91613-0140

Fiber Washer

$ 3.91 / each

Item 3
(on image above)

Part # 17288-0010

Stud

$ 13.36 / each

Item 4
(on image above)

Part # 18594-1000

Macerator Housing

$ 57.74 / each

Item 5
(on image above)

Part # 37056-2000

Chopper Plate with Locknut

$ 20.50 / each

Item 6
(on image above)

Part # 18597-1000

Wearplate, Large

$ 14.47 / each

Item 7
(on image above)

Part # 18596-1000

Gaskets (2 each per kit)

$ 12.04 / each

Item 8
(on image above)

Part # 6303-0003-P

Impeller

$ 28.46 / each

Item 9
(on image above)

Part # 12316-1002

Wearplate, Small

$ 16.56 / each

Item 10
(on image above)

Part # 18593-1000

Body

$ 57.74 / each

Item 11
(on image above)

Part # 1040-0000

Seal

$ 11.77 / each

Item 12
(on image above)

Part # 6342-0000

Slinger

$ 1.63 / each

Item 13
(on image above)

Part # 17288-0000

Stud

$ 15.46 / each

Item 14
(on image above)

Part # 17246-1012

Motor, 12 Volt DC

$ 256.99 / each

Item 15
(on image above)

Part # 92900-0120

Grommets (Set of 4)

$ 8.83 / each
